Concrete is a construction material used to build various structures with a mixture of water, cement, aggregates, and sand. During the concrete mixing process, a certain amount of air is entrapped, which reduces the durability and strength of the concrete by approximately thirty times. Hence, concrete compaction is a part of the process. It is a process of removing air voids from the concrete to gain the desired strength. The air bubbles are evacuated, and the vibrating of the concrete is performed with the assistance of vibrators. Let us examine the various types of vibrators used in concrete and how they function.
What is Concrete Compaction?
Concrete compaction is a crucial process in creating a strong, dense, and durable concrete structure. The primary goal is to eliminate entrained air and voids, thereby achieving a flat, even surface. If air bubbles still remain in the concrete, it increases in permeability with risks of honeycombing, cracking, lower compressive strength, and premature deterioration. Therefore, good compaction plays a crucial role in enhancing the long-term performance and structural integrity of concrete.
In order to counteract these problems, different vibrators are employed for concrete compaction. But caution must be exercised to avoid over-vibrating, as excessive vibration will lead to segregation of the aggregates and also create weak zones in the concrete. Make sure the vibrators are used correctly for concrete compaction.
Types of Vibrators Used for the Compaction of Concrete
The following are the types of vibrators used for concrete compaction in the construction industry.
Internal Vibrator or Needle Vibrator
It is often referred to as a needle or poker vibrator. It is a steel tube containing an eccentric vibrating mechanism powered by an electric motor, diesel engine, or pneumatic drive. The vibrating head is inserted directly into freshly placed concrete, where it rapidly transmits vibrations to compact the mix.
It possesses a high frequency, typically ranging from 12,000 to 17,000 vibrations per minute, with an amplitude varying from 0.015 to 0.08 inches. This device works most effectively when the vibrating head is in complete contact with the concrete surface.
The Form Vibrators
This is also called a shutter form vibrator. It consists of a base plate and finds applications in compacting new cast foundations and in smoothing out the precast concrete slabs and surfaces. It consists of a 3-phase induction motor and contains a completely enclosed setup.
The equipment is stable, strong, easy to maintain, and has a four-rubber-covered power cord. Its housing is usually anchored on the formwork in a horizontal or vertical direction, with spacing not exceeding 90 cm in either direction.

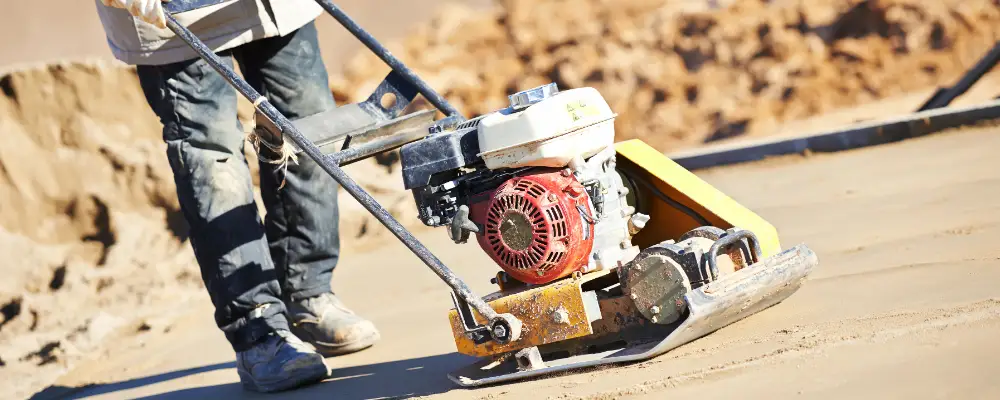

The Surface Vibrators
These are positioned directly on the concrete surface. They are most effective for compacting shallow concrete sections and are unsuitable when the concrete depth exceeds 250 mm. Surface vibrators are particularly efficient for compacting very dry concrete mixtures. Common types of surface vibrators include vibrating screeds and pan vibrators.
Their primary use is in compacting small concrete slabs, typically with a thickness not greater than 150 mm, as well as for repairs and patching of pavement slabs. These vibrators generally operate at around 4000 rpm, with an acceleration ranging from 4g to 9g.
The Vibrating Tables
The vibrating table features a solid steel platform that is firmly supported by flexible springs and powered by an electric motor. It typically operates at a vibration frequency of 4000 rpm with an acceleration range between 4g and 7g.
These tables are highly effective in compacting stiff or coarse concrete mix. This makes them ideal for producing precast components in manufacturing facilities and preparing test samples. Additionally, they help ensure uniform material distribution, which improves the consistency and quality of the final product.
Benefits of Using a Vibrator for Concrete Compaction
- Avoids Air Bubbles/Voids
Air voids, if not well controlled, decrease the strength of concrete and lead to issues such as surface defects and reduced durability. Concrete vibrators are highly effective in eliminating pinned air bubbles, resulting in a tighter and denser mix. The reduction of air voids enhances the overall quality of the concrete, as it becomes more durable over time.
- Uniform Compaction
One of the primary benefits of a concrete vibrator is its ability to achieve uniform compaction of the concrete mix. When the vibrating head is inserted into the freshly poured concrete, it sends high-frequency vibrations into the mix, causing it to settle evenly. This serves to remove the air pockets and voids. It creates a solid and dense material that increases the strength and resistance of the concrete.
- Enhanced Structural Integrity
Even compaction achieves enhanced structural integrity and strength. Concrete vibrators ensure uniform compaction of the concrete. It eliminates weak spots and potential failure points. Proper compaction reduces the likelihood of cracks, voids, and segregation, which can compromise the overall structural performance of the concrete.
- Time Efficiency
Manual compaction of concrete is a labour-intensive and time-consuming process. Concrete pouring is significantly boosted by vibrator backpacks. It allows for faster completion. Such greater efficiency with time is especially beneficial for large projects where many pours have to be completed within stringent timetables.
- Enhances Durability and Strength
The concrete vibrators make the concrete mix less porous, providing resistance to various climatic and weather conditions. Additionally, it also minimises water absorption, making the concrete’s grip strong and substantial.
Working Mechanism of a Concrete Vibrator
A concrete vibrator operates by transmitting high-frequency mechanical vibrations into freshly poured concrete to remove entrapped air, settle aggregates, and increase the density of the concrete. The core mechanism relies on an eccentric rotating mass (unbalanced weight) that creates vibratory motion when the motor runs.
Simple Explanation:
- A motor (electric/diesel/pneumatic) drives a rotating eccentric weight.
- This creates high-frequency mechanical vibrations.
- Vibrations are transmitted into fresh concrete via a vibrating head or surface contact.
- Vibrations cause air bubbles to rise and escape.
- Aggregates settle into a denser arrangement.
- Results in compacted, stronger, and void-free concrete.
Conclusion
The vibrator for concrete compaction is the most significant tool for preventing air bubbles and voids that can weaken the concrete. This mechanism turns out to be the best when compared to all other human works. The vibrator removes all that entrapped air, removes honeycombs, and provides uniform distribution of concrete during the construction.
Establish better bonding by eliminating air voids and weak bonds; using a concrete compaction vibrator effectively ensures proven structural integrity and extends the lifespan of the construction. Therefore, choose the best vibrator for your concrete compaction to ensure the longevity of concrete structures.
