Geotechnical engineering has traditionally been concerned with the behaviour of the soils. It is crucial to know the behaviour of the soil to ensure safety during construction. Unlike various methods of soil testing, the Vane Shear Test is known for its simplicity of operation and the ability to measure the shear strength of soils. Usually, soft clays are selected for this process.
The results on soil stability would encourage an engineer to design a foundation and judge settlement issues. This standard application test is easy to carry out and saves time; hence, it is frequently used both in the field and in the laboratory. It measures resistance to shear forces, thereby ensuring satisfactory construction.
What is the Vane Shear Test?
The vane shear test is used to determine the undrained shear strength of saturated cohesive soils, particularly soft clays. It can be performed either in situ or in the laboratory on undisturbed samples. The test involves inserting a four-bladed vane into the soil and rotating it slowly (typically at 0.1°/s to 0.2°/s) to maintain undrained conditions until shear failure occurs. The torque at failure is measured and used to calculate shear strength using a formula that incorporates vane dimensions. It is especially useful in soft, homogeneous clays where other tests may not be practical. However, it is not suitable for stiff, sandy, or fissured type of soil, where results can be misleading.
Purpose & Importance of Vane Shear Test
Purpose
The Vane Shear Test measures the undrained shear strength of cohesive soils for designing and engineering purposes. This is pertinent when working on slope stability, embankments, and foundation designs. A structural engineer, by knowing this parameter, may impose performance requirements on structures subjected to shear stresses so that undue deformation or failure may not occur.
Importance
The test is significant for yielding quick results, especially in soil situations that are highly unfavourable for performing other tests. Through the provision of information on soil behaviour under shear stress, the Vane Shear Test plays a critical role in cost-effective and improved soil investigation methods.
Applications of Vane Shear Test in Construction
Some applications of the Vane Shear Test in numerous situations:
- Foundation Reinforcement & Design: Calculation of soil strength to design the right foundations for buildings and other structures.
- Slope Stability Analysis: Treating the possibility of landslide or slope failure in hills or embankments.
- Embankment Construction: Calculation of the shear strength of soils used in constructing embankments for roads, railways, and dams.
- Ground Improvement Monitoring: Calculation of the change in soil strength after any ground improvement, such as preloading or stabilization.
These uses emphasize the versatility of the test and its significant importance in providing structural safety and integrity.
Pros of Vane Shear Test
Some benefits of using this test include:
- It is easy to conduct, with little equipment and training required.
- It gives quick information on soil shear strength, enabling timely decision-making.
- It is less costly than other shear strength testing techniques.
- It can be performed in-situ to preserve natural conditions or in the lab on undisturbed samples.
Cons of Vane Shear Test
Limitations and drawbacks of using the vane shear test are as follows:
- Inapplicable in sandy or granular soils.
- Depth limitations exist unless used with drilling equipment for borehole access.
- It may be influenced if the soil becomes disturbed during the insertion of the vane.
- Not suitable in stratified or fissured soils, as results can be skewed when the vane cuts across varying materials or discontinuities.
Apparatus and Equipment Required in Vane Shear Test

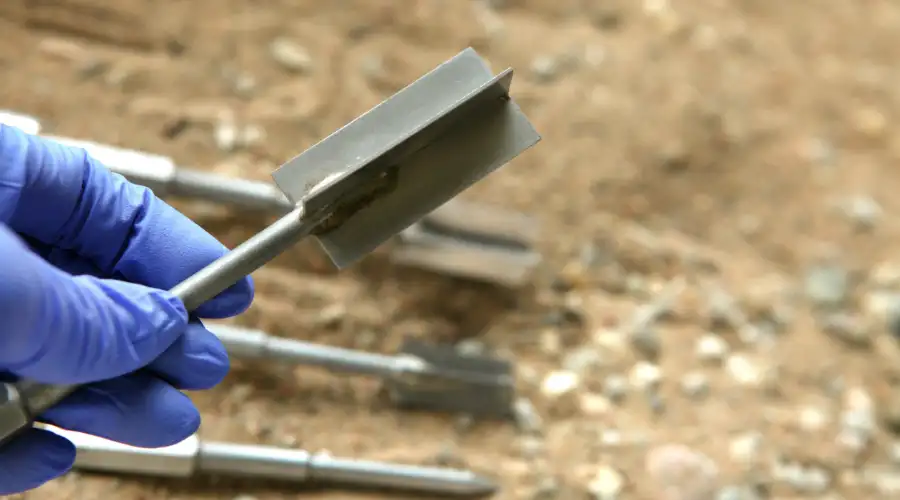

- Vane Device: A four-blade vane fixed to a rod, commonly sized 25 mm × 50 mm or 30 mm × 60 mm. The height is typically twice the diameter.
- Torque Head: Applies and measures the torque needed to rotate the vane.
- Extension Rods: Added to reach desired depths, especially in borehole testing.
- Protractor or Dial Gauge: Measures the angle of rotation to calculate shear strength.
- Torque Measuring Setup: Includes gear wheels and calibrated charts to interpret results.
- Container or Mould: Used for lab samples to hold soil during testing.
- Safety Gear: Gloves, goggles, and protective clothing for field safety.
Vane Shear Test Procedure- Step by Step
Step 1: Site Preparation and Equipment Setup
The vane shear test starts by cleaning the equipment thoroughly. If needed, grease is applied to the lead screw for smoother handle movement. A soil sample is placed in a small cylindrical container (about 75 mm tall and 37.5 mm wide). The soil surface is levelled using screws at the top and bottom.
Step 2: Insert Vane, Apply Torque, and Measure the Readings
Next, the vane is gently lowered into the soil to a depth of 10–20 mm. Next, we note the initial reading from the dial. The vane is rotated slowly, at about 0.1 degrees per second. As torque builds, the soil resists and eventually fails. When this happens, the dial pointer jumps back slightly—that’s when we stop the test and note the final reading.
Step 3: Use Remoulded Strength Test
The angle of torque is found by subtracting the initial reading from the final one. This is repeated with 2–3 samples for accuracy. The height and diameter of the vane are also measured with a vernier calliper. Then remould the soil by stirring it and repeat the test.
Step 4: Calculations
Determine shear strength using:
τ = T/K
where:
τ= shear strength (kPa or kg/cm²)
T = measured torque
K = constant based on vane dimensions
The sensitivity is calculated using:
Sensitivity = Undisturbed Strength ÷ Remoulded Strength
This helps understand how much strength the soil loses when disturbed, which is crucial for safe construction.
Conclusion
In short, the vane shear test is a quick and cost-effective method to check the strength of cohesive soils among geotechnical engineering tools. Some crucial uses are embankment construction, slope stability analysis, and foundation design. Clearly, it plays a significantly important role in securing structural integrity. There are certain drawbacks, as with any other test, but if used correctly and with a proper analysis of the results, it can greatly help the construction process.
