In today’s world, the construction of the modern age is influenced by foreign countries and their ideologies. Likewise, tensile structures are found in certain buildings, where tension is essential to maintain their stability and shape. This idea was brought by Britons and made tensile structures a renowned constructive method.
These tensile structures are unique and durable for constructing any shape. In fact, these structures tend to use fewer building materials during construction, which makes them environmentally friendly. Tensile structures are built with various materials and types to ensure the most effective shape. For a better understanding of its benefits, applications, and types, continue reading the content below.
What is Tensile Structure?
A construction structure that depends on tension instead of compression to maintain its shape and strength is termed tensile structure. This lightweight system uses components such as membranes, high tensile steel cables, fabrics, or PTFE-coated fiberglass. What’s special about tensile structure is it can cover large areas with minimal material so that it becomes visually good and economical.
Structure wise the fabric or membrane stays in the stable tension, whereas structural steel or concrete handles the compression. This combination improves the durability and resistance to aspects such as rain, wind, and UV rays.
The tensile structures are commonly used in stadium roofs, exhibition halls, walkways, and canopies to reap the flexibility and adaptability. Their unique curves let in natural light and airflow, which make tensile structures a sustainable option in modern architecture.
Types of Tensile Structure
Linear Tensile Structure
A linear tensile structure is a type of construction system that relies on linear tensioned elements, such as cables, ropes, or high-strength fabrics, to maintain structural stability. Compression members support these structures and use components like tension cables, anchor points, membranes, and fabrics to enhance overall performance and load distribution..
Three-dimensional Tensile Structure
Three-dimensional tensile structures rely entirely on tension rather than compression to maintain their form. They are known for being lightweight, flexible, and capable of achieving double-curved surfaces. This allows architects and engineers to create complex and visually striking designs. These structures are often used where translucency is desired, as the membrane materials allow natural light to filter through, enhancing both energy efficiency and aesthetic appeal.
Surface-stressed Tensile Structure
Surface-stressed tensile structures rely on distributed tensile forces across a membrane or fabric surface to maintain stability and shape. Unlike traditional structures that depend on compression, these systems use tensioned surfaces to resist external forces. Common examples include tensile canopies, fabric roofs, tents, and dome-like membranes.
Advantages and Disadvantages of Tensile Structures
Advantages Of Tensile Structures
1. Lightweight Yet Strong: Although tensile structures require less material, they can give more strength by distributing loads through loads rather than relying only on rigid components.
2. Flexible Design Options: The flexibility of tensile structure allows architects to make creative curves and flowing shapes easier. This freedom to design paves the way for more eye-catching modern structures.
3. Let In Natural Light: The tensile structures perform to bring natural light and reduce energy costs for artificial lights. It optimises daylight usage, and it is highly transparent. Nevertheless, it has UV filtration and customised light levels according to the construction projects.
4. Quick Installation: The tensile structure helps reduce labour costs by providing a quick and easy installation. It has prefabricated components that minimise tasks for workers. Additionally, it needs fewer foundation requirements because of lightweight structures.
5. Longevity: The tensile structures are strong and durable, offering high durability and resistance to all climatic conditions. Tensile structures are low-maintenance and long-lasting, with their incredible features.
6. Eco-Friendly Structure: Since this structure makes use of minimal material, remains energy efficient, and has potential for recyclability, tensile becomes a sustainable option for architecture.
Disadvantages of Tensile Structures
1. High Initial Design Costs: Tensile structure installation is usually cost-effective. However, the initial design and planning phase can be expensive, as you may need customised shapesand materials. Also, overall cost increase due to strong foundation requirements.
2. Structural Limitations: Tensile structures are primarily suitable for lighter loads due to their limited loading capacity. Deep vibrations and high winds have a high chance of causing unwanted stress or shaking. Therefore, before selecting these structures, it is important to check all the consequences.
3. Complex Designs: All the complex designs in tensile structures require expert solutions. Working on its dynamics requires advanced expertise and knowledge. The components of tensile structures are custom-made, which can increase cost and time.
4. Maintenance Challenges: You must check regularly to find any tension loss, wear, or damage caused. On the other hand, cleaning large surfaces can also consume more time and effort.
5. Increased Chance for Tears: The membrane of the tensile structure can be torn or get punctured when it comes in contact with sharp objects or is exposed to extreme weather conditions. This may lead to costly repairs.

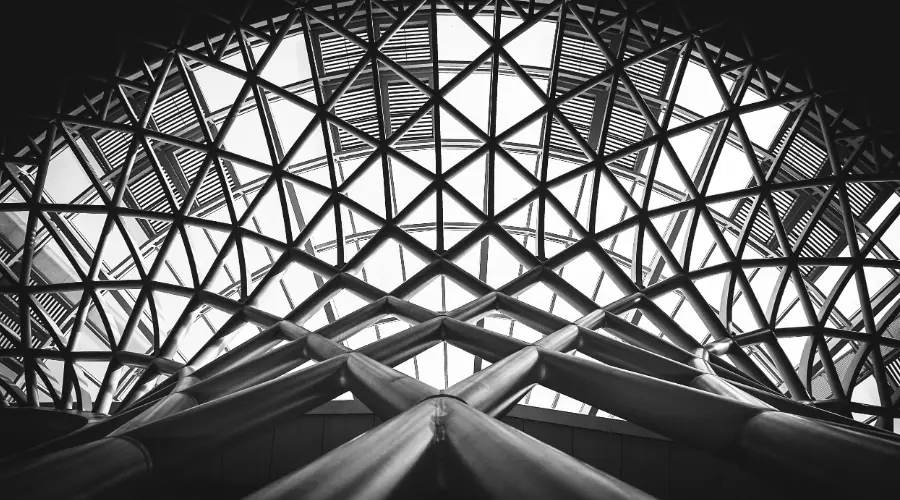

Applications of Tensile Structures
- Sport Fields and Courts: Tensile structure is an essential requirement for building courts, pools, fields, tracks, etc., It helps to provide shade for the audience or the spectators of the event. It shields viewers from its construction and functions particularly well in severe weather.
- Transportation: The tensile structures are used to cover vehicles, railways, buses, airports, and more. Tensile-structured shelters cover the parking areas and bus stops, providing a safe waiting environment. There are also terminals, canopies, toll plazas, and other structures that ensure the safety of vehicles and passengers.
- Commercial Facades and Atriums: Tensile structures are an excellent add-on to commercial facades while controlling sunlight and reducing heat. Especially in atriums, they make the space bright with minimal structural support. Proper installation brings both aesthetics and energy efficiency.
- Farms: Tensile structures are also useful for protecting crops and related equipment from harsh weather. As it is flexible, lightweight, and cost-effective, the tensile structure is easy to install over large areas and improves working conditions for farmers in greenhouses, livestock, etc.
Materials Used in Tensile Structures
- Membranes: Fabric materials and surface materials stretched over the surface, which is coated with polyester and fiberglass. In addition, the material used for roofing has its own lifespan of 20+ years.
- Fibre: The tensile structures use glass fibre as mesh, cables, nets, etc. It is ultra-efficient and performance-driven in combination with tensile structures.
- Concrete: Basically, the ground is covered with anchors with protected tensile structures. The importance of these tensile structures lies in their ability to enhance stability and flexibility.
Design Considerations for Tensile Structures
In order to achieve expected results, these important factors must be considered during the design process of tensile structures.
Material Selection: Choose membrane materials that are quality, flexible, affordable, and suitable for the environment. Some of the common options include PVC-coated polyester, PTFE-coated fiberglass, and ETFE films.
Decide the Form and Geometry: The form must be carefully chosen, as it distributes forces evenly. Likewise, geometry should be decided, as it keeps the structure in tension and maintains stability.
Load and Structural Analysis: As tensile structures are lightweight, it is essential to calculate the anchoring and cable tensioning to avoid deformation under pressure.
Environmental Factors: Consider climatic conditions because proper drainage design and slope are important to prevent water pooling that may damage the structure.
Aesthetics and Functionality: No matter what structure you’ve planned, the design should go well with visual appeal. So, pick the perfect colour, shape, and translucency.
Fabrication and Feasibility: Make sure the selected form is able to be manufactured or installed effectively. You can use 3D modeling and related software to preview before construction.
Installation and Maintenance of Tensile Structures
Tensile Structure Installation
Step 1: To install the tensile structure, first clear, level, and mark the area as per the structural layout.
Step 2: Set the foundation and install the steel masts, arches, or columns that support the membrane. Mostly they are fabricated prior and anchored into the foundation.
Step 3: Carefully unfold the membrane and position it over the supports. Crane or rigging tools can be used to align and clamp to the cables or frames.
Step 4: According to the designed shape, stretch the fabric with tensioning equipment. This should be done gradually to avoid stress and maintain a uniform load.
Step 5: Experts examine all connections, tension levels, and alignments to ensure the installation is proper and safe to use.
Maintenance of Tensile Structure
Make sure to conduct frequent inspections, cleaning, monitoring, measuring, and replacing. It is essential to have these on a regular basis to avoid any defects.
Shape of Tensile Structure
There are various tensile structure shapes, such as anticlastic, conical, arch, barrel, cable net, and free-form membranes. Each shape is designed to deliver unique benefits and remain structurally efficient. The tensile structures can be easily paired with glass, steel, stone, or any other materials to create modern spaces that are visually stunning. So, decide the shape wisely!
Final Takeaway
Tensile structures are innovative modern solutions that meet unique structural demands. It is applicable for all types of categories like transportation, sports, agriculture, etc., In today’s advanced tech era, construction and building have taken giant steps to provide lightweight and material-efficient tensile structural shelter. Moreover, tensile structures are highly sustainable and durable, and they offer cost-efficient installation. Therefore, choose a tensile structure for its visual elegance and contemporary style.
