Especially in construction, after leveling and achieving the perfect surface that is also durable, this work is essential for floors that require smooth, flat finishes. That is the time when a screed concrete mix becomes useful.
For real estate developers, civil engineers, and homeowners in India, this is the key factor to getting a reliable mixture, which will work perfectly under the specified conditions. If at all, the base being made for tiles, wood, or even industrial flooring is wrong, then the right screed mix ratio isn’t negotiable.

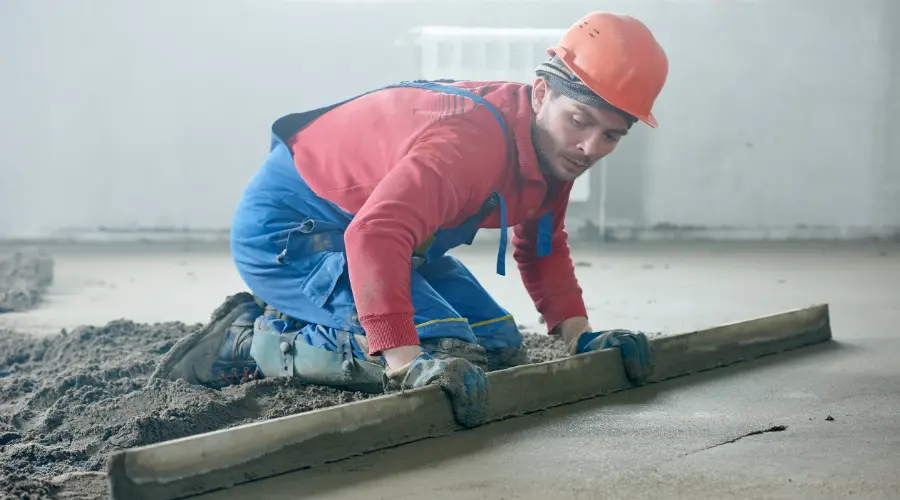

Basics of Concrete Screed
Screed concrete is a fine, semi-dry cement-sand mixture (commonly in a 1:3 to 1:5 ratio) applied over a concrete subfloor to create a level and smooth surface for final flooring finishes.
The primary difference between concrete and screed is that concrete contains coarse aggregates, such as gravel fill, while screed consists only of fine aggregates, like sand, resulting in a smoother finish. Depending on the application, screed is usually laid at a thickness between 25 mm and 75 mm. The material is still used primarily in the preparation of flooring for tiles, vinyl, wooden flooring, or carpet, as the solid and level base is the best option for all these activities.
Depending on the application—bonded, unbonded, or floating—screeds can be modified using admixtures like accelerators or reinforcing fibres to enhance drying speed or durability. It has a broad spectrum of applications in the residential and commercial building.
What is the Screed Concrete Ratio?
Screed concrete ratio means the proportions of cement and sand that have been used to prepare a screed mixture, a mixture that is basically made up of only those two materials. The ratio is the one that determines the features, the life span, and the quality of the screed layer that has been laid on the structural base of the concrete.
The most typical mix of screed is the one where there is 1 part of cement and 4 to 5 parts of sand by volume used, depending on the floor category, like normal floors, heavy-duty zones, or quick-drying areas. The right ratio guarantees a perfect and equal finish suitable for tiles, wood, or industrial floors. The mixture must be even to avoid cracking, shrinkage, and loss of bonding strength during drying and the service life of the product.
Different Types of Screed Ratio
Standard Screed Ratio
The standard screed ratio is a combination of cement and sharp sand that provides the user with a balanced mix of strength, workability, and ease of application. This balanced mix is the most preferred floor for both domestic and light commercial flooring.
Standard Screed Mix
The average ratio of the screed is from 1:4 to 1:5 (cement to sand); this ratio is enough to compress a floor of up to 25-40 mm. Thus, the mix makes the floor both easy to apply and reliable, which in turn becomes the hallmark of general use.
Robust Screed Mix
For the floors that are of heavy end, that is, the case of industrial buildings, it is suggested to use a mixture of 1:3 (cement to sand). This composition of the floor allows it to be very strong and resistant to wear; however, it is recommended that it should only be used after a long enough drying period to ensure stable strength.
Speedy-Drying Screed Mix
Fast-drying screeds, typically supported by chemical additives, are devised to dry within 24-72 hours. Usually, the mix ratio is kept at 1:4, but the changes in hydration and shrinkage make the application and drying times much quicker, thus being more suitable for the commercial sector.
Why is the Screed Concrete Ratio Important?
By ensuring a well-balanced mix,
- Strength: The screed can support the flooring materials and expected usage.
- Workability: It will be easy to place, level, and compact the screed during its application.
- Shrinkage Control: It can resist the appearance of narrow cracks during drying and curing.
- Adhesion: Strong bonding to the concrete substrate, especially for bonded screeds.
- Drying Time Optimization: With a proper mix, the drying process is shorter, and it can be easily planned, thus it will not cause any inconvenience, especially for commercial projects with tight schedules
Moreover, floor coverings with incorrect ratios will have less finish and durability, which could yield expensive repairs.
Snowball Test for Sand-Cement Screed
An incorrect moisture concrete mix will lead to a decrease in the final strength, a bad finish, and weak bonding of the floor.
The Snowball Test is a field test method that is very effective and widely applied to check the moisture level of the sand-cement screed mix. This method of testing is used to determine if the applicable initial screed consistency is too dry (which would lead to cracks and bond weakness) or too wet (which would cause excessive shrinkage and surface dusting).
Performing the Snowball Test
Take a portion of the newly made sand-cement screed and press it with your hand. Squeeze the material hard to make a ball (just like a snowball).
Look at the following options,
- If it holds its shape and the mix binds well without crumbling, then the water content is suitable.
- If the mix is crumbly and dry, it means there is insufficient moisture. Just add a little more water to achieve the correct consistency.
- If the mix is too wet, water will seep out when squeezed. This indicates excess moisture. The issue can be resolved by adding dry sand to rebalance the mix.
Material Selection for Screed Concrete Mix
Material selection for screed mix is crucial to ensure the surface is durable, flat, and maintains performance throughout its operational lifespan.
- Cement: Depending on the purpose, select the right type of cement, such as OPC 43 or 53 grade, so that the strength is obtained quickly and the bond is reliable.
- Fine Aggregates (Sand): The inclusion of sharp, well-graded, and silt- and organic-free fine aggregates (2.36mm down) is necessary for the screed. Always, river sand is banished due to the varied degree of offers you can receive.
- Water: The only acceptable water is drinking water. The water quality is not only dependent on the pH but also on the contaminants found that pose a certain level of risk.
- Admixtures: Especially in large pours or thin sections, plasticizers or shrinkage-reducing agents are predominantly used for workability and crack resistance, irrespective of time.
- Fiber Reinforcement: Polypropylene or glass fibers are highly recommended as primary reinforcements to control micro-cracking in high-performance screeds.
Conclusion
Selecting the right materials for the screed mix is essential for the creation of a sustainable, level, and crack-resistant flooring base. The correct mix design will lead to durability if the above-mentioned steps are taken.
As a result, when the mix is further fortified with fibers and admixtures, it can satisfy exceptionally severe circumstances where heating systems have been installed under the floor or gain extra strength.
Always match the mix parameters to the specific location, the required load, and the type of application. Regardless of the purpose residential flooring or industrial slabs are meant for, the choice of materials made by knowledgeable people is important as it results in less shrinkage, better bond strength, as well as increased curing efficiency, thus making the floor system stable and maintenance-free.
