Every building in the construction industry must have its foundation designed to offer the utmost stability, safety, and even durability. The foundation should be tailored to suit the specific requirements of both structural engineering and geology of the site. Pier foundations, for instance, are an example of a specialized solution to deep foundations for surface soils which do not always provide adequate support or where unusual site conditions require original ways of support.
They all have to deal with chunks of concrete and consider managing particular costs, thus learning about pier foundations in particular will benefit them in planning, controlling risks, and managing expenses.
In this article, I will explain the construction aspects of pier foundations including their definition, types, pros and cons, roles they play, how to implement them, materials, and offer practical advice.
What is a Pier Foundation?
A pier foundation is a type of deep foundation system consisting of cylindrical columns called piers, which are erected into the earth to transfer structural loads from the superstructure to underlying, more reliable soils or bedrock. In construction parlance, piers function as stand-alone or single-column supports, usually placed at regular intervals beneath the superstructure.
Pier foundations are designed to avoid overlying weak or problematic soils as compared to shallow foundations like spread footings and slab-on-grade foundations. Their importance increases where there are steep changes in elevation, at sites with expansive or collapsible soils, or in locations with high water tables. They constitute the preferred solution when construction is required with little alteration of the site or when traditional foundations are impractical.

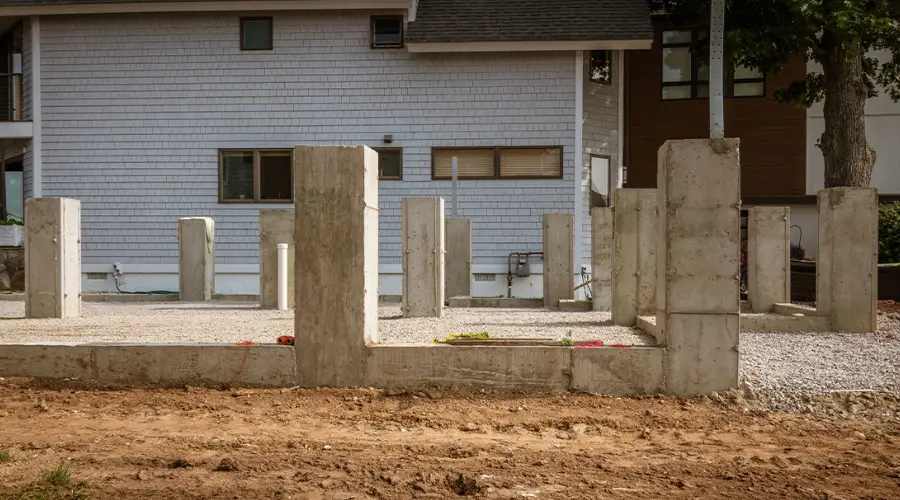

Types of Pier Foundations
Different pier foundations have different materials and construction techniques defining them. Below, you will find a deeper discussion of each type along with a main variation table for quick reference.
1. Masonry Pier
Masonry piers are built from bricks, stones, or concrete blocks, and are sometimes reinforced with steel bars. They provide good load bearing capacity and are usually employed where appropriate masonry materials are present.
2. Concrete Pier
These types of piers are made of reinforced concrete which gives them high strength and durability. They are also resistant to fire and termites and require very little upkeep. Concrete piers are appropriate for a majority of structures, particularly where high strength and durability are required.
3. Drilled Caisson or Pier
Drilled caissons are typically deep, cylindrical foundations designed to bear vertical loads from above while transferring them to stable soil or rock layers below through axial compression. These are used in applications where high load-bearing capacity is necessary.
4. Timber Pier
Timber piers are made from treated timber and are frequently strengthened with steel rods or rebar. These piers are typically employed for short-term structures or light buildings in country areas. Timber piers can be used with soil that has a high soil-bearing capacity. They are easy to install but are less durable than concrete or steel piers.
5. Steel Pier
In regions of weak or soft-bound soil, steel piers made of steel pipes are applied. These structures are driven or drilled into the ground until they reach a firm level of soil or rock. Steel piers work best on industrial sites, soils that corrode easily, or where there are expectations of heavy loads.
| Type | Material | Typical Use | Installation Method |
| Masonry Pier | Brick, stone, blocks | Residential, low-rise buildings | Built in-situ |
| Concrete Pier | Reinforced concrete | Most structures, high strength | Cast-in-place or precast |
| Drilled Caisson | Reinforced concrete | Large buildings, bridges, deep support | Drilled and filled |
| Timber Pier | Treated wood | Temporary, light, rural structures | Driven or placed |
| Steel Pier | Steel pipes/piles | Industrial, heavy load, poor soils | Driven or drilled |
| Composite Pier | Concrete + steel | Complex soil, high-performance needs | Mixed methods |
Each type is chosen based on soil analysis, load requirements, and construction logistics.
Pros and Cons of Pier Foundation
Advantages (Construction Perspective):
- Best for Low Strength Soils: Enables building on locations with weak, expansive, or fluctuating soils.
- Minimizes Site Disturbance: The existing landscape is left mostly untouched which reduces environmental damage as there is little excavation needed.
- Adaptable to Challenging Sites: Useful on steep slopes, areas with restricted access, or regions with subterranean features.
- Cost-Effective in Specific Situations: It can be more economical than extensive soil remediation or deep excavation for shallow footing systems.
Disadvantages (Construction Perspective):
- Requires Specialized Equipment and Skilled Labor: Installation requires the use of specialized heavy machinery and workers with a high level of training.
- Danger of Settlement if Poorly Designed: Deficient design or construction may result in differential settlement and other structural concerns.
- Time-Consuming Installation: Other methods of soil condition strengthening are less time-consuming as compared to pier foundations. These are shallow-mounted and stand-alone, making them time-consuming to install.
Application of Pier Foundation in Construction
Pier foundation types are highly preferred in industry for various uses:
1. Residential Construction
- Difficult Landscape:
Houses located on steep mountains, hills, or regions with shallow weak soils are best built using pier foundations. These foundations support the structure by avoiding soft or compressible topsoil, which is shored to more solid layers underneath.
- Regions at Risk of Flooding:
In flood prone areas, pier foundations that are raised allow the structure to remain above the water level which reduces damage to the houses.
2. Bridges and Infrastructure
- Water Crossings:
Infrastructures that are constructed over water like rivers, lakes and wetlands make use of piers for caisson drilled or cambon steel. These are usually placed in stable bedrock or dense earthy soils.
- Soft Ground Support:
An infrastructure that uses pier foundations for the construction over loose ground or untreated soil is charged with maintaining an unhindered settlement.
3. Industrial Facilities
- Heavy Equipment:
Pier foundations are appropriate for industrial structures that contain heavy machinery, or large equipment, or require wide, unobstructed areas. These types of foundations withstand substantial stresses and give versatility in room arrangement owing to their rigid support for spatial layouts.
- Vibration Resistance:
These types of foundations separate supporting piers from the rest of the structure, which enables them to be designed in such a way that vibrations caused by machines or tools are absorbed. Therefore, the structure, as well as the people within it, are kept safe from the potentially damaging impacts of vibrations.
4. Commercial Developments
- Foundations Associated with Urban Environments:
Pier foundations offer a suitable solution in the crowded urban core where space is at a premium and below ground works are difficult to undertake. These piers require less excavation and can be placed with minimal impact on adjacent buildings and infrastructure.
- Caissons in Commercial Use:
Drilled caissons are commonly employed as pier foundations to support heavily loaded commercial high-rise buildings whilst providing the required stability and safety.
5. Other Applications
- Retrofitting and Underpinning:
An existing structure that needs extra support because of additional load-bearing or soil subsidence can be underpinned with pier foundations.
- Environmental Sensitivity:
In areas with sensitive environments, pier foundations reduce disruption of soil and the natural terrain.
They are chosen primarily because pier foundations provide efficient load transfer to stable strata and facilitate flexible support to the building.

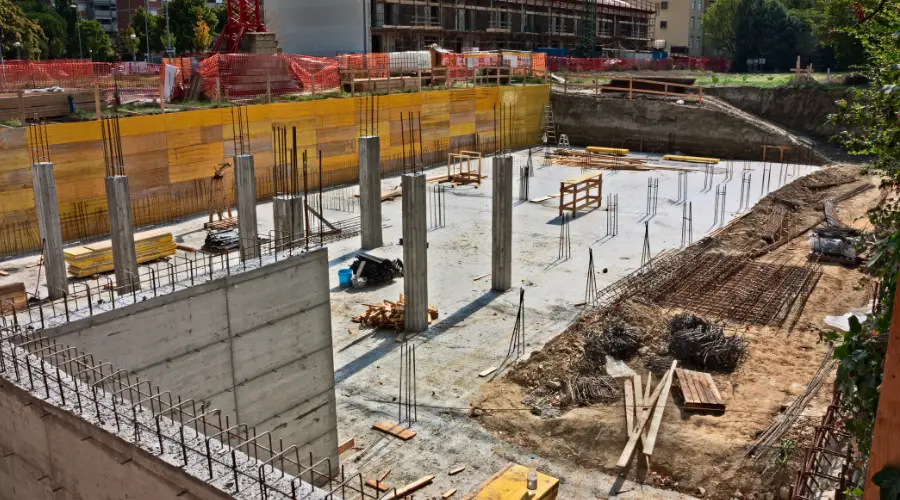

Steps for Pier Foundation Installation
This is usually how the construction activities related to pier foundations are performed:
Geotechnical Investigation and Designing:
In the construction and civil works, engineers conduct detailed land surveys to fix the position and altitude of each pier.
Geotechnical Investigation GL :
Soil samples are taken at selected intervals through standard penetration test (SPT), cone penetration test (CPT), or borehole sampling methods. Carrying out laboratory testing will give the values of the soils in terms of bearing capacity, shear strength, and settlement characteristics.
Design Consideration :
The design of the pier encompasses the depth, diameter, and the amount of reinforcement and concrete needed which is fixed based on results from the soil tests in order to provide sufficient stability and mitigate differential settlement.
Augering and Drilling
- Equipment Choice:
Depending on pier type and soil conditions, augers are utilized for soft soils, rotary drills for hard rock, and pile drivers for driven piles.
- Excavation Procedure:
Excavation is done to a depth specified in the geotechnical report. If the soil is loose or unstable, water or bentonite slurry can be used to stabilize the hole.
- Inspection:
After cleaning the hole and ensuring it is vertical, any loose material or water is cleared prior to proceeding.
Preparation for Concrete Pouring or Setting Precast Piers
- Placing Reinforcement:
Reinforcement cages made out of steel (rebar) are constructed and sequentially lowered into the cavity. The cage is relocated to a central position where geometric balance achieves complete positive concrete cover along with structural solidity.
- Poured Concrete:
In the instance of piers installed on site, concrete is poured directly into the cavity region using a tremie pipe for the most part to prevent segregation, ensure compaction, or form filling especially in excavations that are deep or submerged in water
- Use of Precast Piers:
In the case of precast piers made out of concrete or steel, they are set and aligned within the cavity, then g routed, or connected in place
Curing and Quality Control
- Curing:
After pouring, concrete is allowed to cure properly. Curing methods may include wet curing (using water or curing compounds) or covering with insulating blankets, especially in cold weather.
- Quality Control:
Cylinder samples are taken from the concrete batch and tested for compressive strength. Non-destructive tests (such as ultrasonic pulse velocity) may also be conducted to assess concrete quality.
Connection to Superstructure
- Load Transfer:
Once the pier is set and cured, a bearing plate or cap is installed at the top. The superstructure (column, wall, or beam) is connected to the pier using dowels, anchor bolts, or embedded plates to ensure proper load transfer.
- Alignment and Leveling:
The connection is checked for alignment and level to prevent eccentric loading and ensure structural stability.
Safety and Compliance
- Safety Measures:
All stages of installation are performed in accordance with safety protocols, including proper shoring of excavations, use of personal protective equipment (PPE), and adherence to confined space regulations.
- Construction Checks:
As-built inspections and documentation are carried out to verify that the foundation matches the reviewed construction drawings and design specifications. Any deviations are addressed before proceeding.
Materials Utilized in For Pier Foundation
The correctness of the selected materials has a direct bearing on durability and performance of pier foundations:
Concrete: Special consideration is given to the concrete mix’s grade and type which have an influence on the pier’s bearing capacity and durability.
Reinforcement Steel (Rebar): Increases concrete’s tensile resistance by being cast in the concrete.
Pipes and Piles: For piers, steel pipes or piles are used because of their high bearing capacity and stability against surrounding factors.
Timber: For some conditions and temporary works, wood can be timber treated with preservatives for timber piers.
Composite Materials: Additional advantages in more demanding applications to pre-formed structures like concrete-filled steel tubes have composite materials.
Material selection is made considering the structure, external settings, and available funding for the project.
Conclusion
Construction-wise, choosing a type of pier foundation is perhaps one of the most important decisions to make regarding project execution, safety, and cost. Pier foundations perform to advantage in difficult environments because they are versatile, do not disturb the site to a great degree, and have efficient load transfer mechanisms. On the other hand, pier foundations require highly skilled installation, and if not designed adequately, there are sized relevant harmful settlements. As with other civil engineering structures, it is critical to work with experienced structural engineers and geotechnical experts who ensure pier foundations are designed and installed properly. Trouble-free and multifunctional pier foundations can fulfill the sophisticated requirements of construction projects when properly implemented.
Frequently Asked Questions – FAQs
A pier foundation is ideal when the surface soils are weak, expansive, and volatile, or when the site has undulating topography and a high water table, or when minimal site disturbance is desired.
Both are deep foundations but piers are usually wider in diameter and shorter in length, often drilled or cast-in-situ, while piles tend to be longer, narrower, and driven or cast into the soil.
This will vary according to the soil conditions and load requirements. Geotechnical investigations, often called soil tests, will identify how deep the soil needs to be excavated to reach stable soil or bedrock.
Risks arise from inadequate and unsupervised soil investigation along with differential settlement due to improper installation. These risks can be avoided through sound design, skilled labour, and thorough quality control.
