What kind of wall can offer enough strength to hold tons of earth against it, resist earthquake forces, support bridges, and yet be constructed faster than conventional systems? We are now talking about the presence of Mechanically Stabilised Earth (MSE) walls—an earth-retaining method that is revolutionising infrastructure construction. Chances are that an MSE wall is what you drive over on a highway embankment or walk by on a sloped walkway.
This blog uncovers what makes the MSE wall an engineering solution for the problems of today and why they are much more than a mere soil-and-concrete structure.
What is MSE Wall?
An MSE (Mechanically Stabilized Earth) wall is a type of retaining wall system designed to hold back soil using reinforced backfill. Unlike conventional retaining walls that rely purely on the mass of concrete or masonry, an MSE wall combines granular fill material with reinforcement elements like geogrids, steel strips, or geotextiles to create a stable composite structure. The reinforced soil acts like a gravity wall, providing both strength and stability. The facing elements comprise precast concrete wall panels or modular blocks for structural and aesthetic functions.
MSE walls find their applications in highways, bridge abutments, and embankments due to their strength, flexibility, and ability to resist seismic forces and the fact that erection is fast. Due to their suitability for restricted access sites or difficult ground conditions, they are usually cheaper than the traditional retaining wall systems.

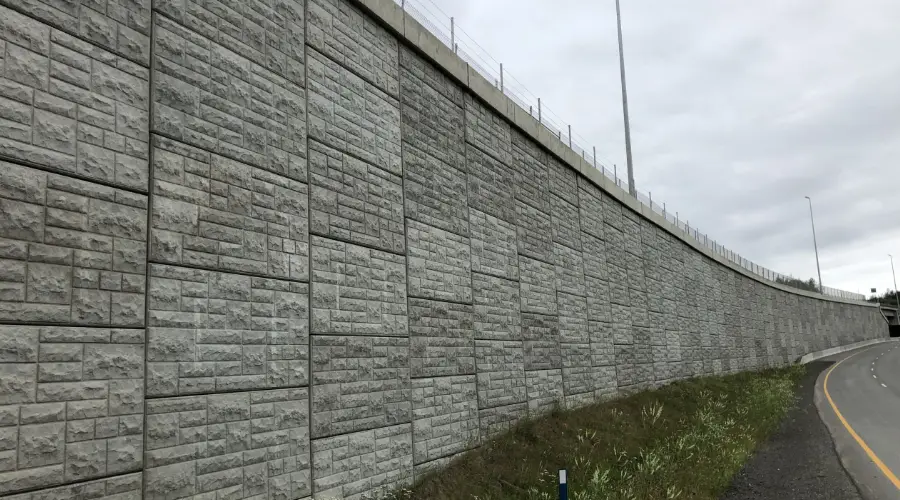

Benefits of MSE walls
- Heavy Load Capacity: These walls can support extremely heavy loads, thus can be used for bridge abutment footings, crane loads, or service loads.
- Seismic and Dynamic Resistance: These are designed to resist seismic and dynamic forces and help distribute bearing pressure over a wide area.
- Faster Construction: It enables quick construction compared to conventional retaining walls.
- Minimal Site Preparation: It requires less site preparation and can be built in congested areas where installing retaining walls is challenging.
- No Additional Supports: Provides built-in stability, eliminating the need for external reinforcement.
- Free Drainage: The granular backfill facilitates free drainage with panel joints, thereby reducing the hydrostatic pressure.
- Lightweight and Precast Fascia: Fascia construction based walls are lightweight, precast, and easily transported and lifted using simple equipment.
- Customisable: This wall can be made of any height, customised for designs or logos, and adjusted to manage obstructions.
- Versatile Construction: These walls can be tailored to suit any geometry without any heavy machinery or skilled workers.
- Durable Service Life: It provides a long service life even under extreme loading and complex conditions.
Components of MSE walls
Reinforcing Element
Reinforcing elements, which include steel strips or geogrids and range from geotextiles, are embedded within soil masses to impart tensile strength and cohesion and to avert wall failure.
Backfill Materials
Granular, free-draining materials such as crushed stone, coarse sand, or well-graded gravel are used as backfill in order to assure suitable compaction and to facilitate drainage so that water accumulation behind the wall is prevented.
Facing Elements
Facing elements have the form of precast concrete panels or wire mesh. They provide the visible surface of the wall, and protect the reinforcing elements from erosion.
Drainage Layer
Drainage layers, consisting of perforated pipes and geotextile, are incorporated to channel water away from the wall so that hydrostatic pressure does not develop.
Jointing and Filling Materials
Common jointing and filling materials include cement mortar, non-shrink grout, elastomeric sealants, and bituminous concrete fillers. These materials effectively seal gaps, preventing the infiltration of water, debris, or fine soil particles, which can otherwise compromise the stability of the wall.
Applications of MSE Walls
- Highways and Railways: Used to stabilise embankments and provide support for an elevated structure.
- Abutments of Bridges: These walls support approaches for bridges and transitions.
- Dams and Embankments: These improve the stability of water-retaining structures.
- Commercial and Residential Developments: For urban areas, they are used as decorative and functional retaining walls.
- Slope Stabilisation: To prevent soil erosion and landslides on hill terrains.
Design and Construction of MSE Walls
Site Assessment and Design Planning
Detailed site surveys are undertaken as a first step to assess soil conditions, water level in the ground, and topography. The engineer then goes on to establish the design criteria based on the data, which would include wall height, loading conditions, seismic considerations, and, of course, service life. This helps with the choice of materials, type of reinforcement, and how the walls are laid out to ensure that the design will be stable and compatible with the project requirements.
Material Selection
Materials play a tremendous role in construction. Reinforcements may be steel strips, geogrids, or geotextiles selected based on strength requirements, durability, or unforeseen corrosion scenarios. Backfill materials must be granular and free-draining and should be easily compacted-well-graded sand, gravel fill, or crushed rock. For facing, there are options such as precast concrete panels, wire mesh, or modular blocks, depending upon the needs of the project for aesthetic and structural value. Drainage comprises materials like gravel, perforated pipes, and geotextiles to avoid water accumulation.
Foundation Preparation
A great wall needs a solid and level foundation. Excavation to the required depth, stripping off any unsuitable soils, and laying down a compacted gravel or lean concrete leveling pad go towards its preparation. This pad forms the basis for the laying of the initial row of facing elements and aids in setting the alignment and offloading these elements.
Wall Assembly: Facing, Reinforcement & Backfill
Each layer is then subjected to a construction process. The first layer of facing elements is placed on the foundation pad and aligned. Reinforcement is laid horizontally behind the facing and secured in place. Then, the backfill is placed in thin lifts and compacted. This installation of wall facing, reinforcement, and compacted backfill is repeated for each layer corresponding to the desired height of the retaining wall.
Drainage Integration
Drainage provisions are provided throughout the construction work. A drainage aggregate layer consisting of gravel or crushed stone is laid behind the facing walls, together with geotextile filters to check soil migration. At the bottom-most layers of drainage, perforated pipes may be put in place to drain water to a suitable outlet. In some designs, weep holes are provided. Proper drainage ensures minimum hydrostatic pressure and maximises life span of the wall.
Finishing, Inspection, and Handover
Upon finishing the wall, waterproofing of joints, erection of protective barriers, and surface finishes are done. Quality checks were carried out throughout the construction, including compaction inspections, reinforcement installations, and drainage inspections. After drainage testing and a final inspection, the site will be cleaned and ready for the MSE wall to be put into operation.
Conclusion
MSE walls are versatile, economical, and durable solutions for soil retention and slope stabilisation in many civil engineering projects. Their modular design, in combination with reinforced materials and drainage systems, has been proven to offer long-term performance and adaptability to site conditions. As urbanisation continues unfettered, MSE walls promise to be a vital weapon in earth pressure management and the building of resilient infrastructure.
