Mechanical anchors are among the most important fastening solutions in contemporary construction, making sound connections between structural and non-structural members. These key elements distribute loads from attachments into base materials via mechanical interlock, friction, or a blend of both concepts.
From modest home remodelling endeavours to sophisticated industrial installations, mechanical anchors provide reliable holding power across myriad applications. Knowledge of the types, functions, and correct installation techniques of these fasteners enables construction workers to make brilliant decisions that will provide structural stability, safety, and success to a project.
Overview of Mechanical Anchors
Mechanical anchors are unique fastening systems engineered to fasten objects securely onto base materials such as concrete, brick, or stone. In contrast to adhesive-based fasteners, mechanical anchors develop holding force by physical principles—expanding against drilled hole walls, wedging, or developing mechanical interlock with surrounding material.
But a few mechanical anchors demand pre-drilling a hole in the base material, driving in the anchor, and activating its locking mechanism via torque application or hammer driving. Activation generates tremendous holding strength resisting pullout, shear, and vibrational loads.
A variety of materials, including stainless steel, zinc-plated steel, and specific alloys for particular climatic conditions, are available for mechanical anchors.
Types of Mechanical Anchors
Clamping Anchor
When clamping anchors are tightened, they expand against the drilled hole walls to provide gripping power. The expansion mechanism is compressed against base materials, which creates friction to resist pullout. These anchors work exceptionally well in solid concrete and are available in a range of sizes to fit different load requirements and application needs.
Wedge Anchor
Wedge anchors have threaded bodies with tapered tips that hold expandable clips. As wedges are tightened, they move up and push clips outward against the hole walls. This produces immense holding power in concrete uses, which makes wedge anchors perfect for heavy-duty structural connections where maximum resistance to vibration and high pullout forces are needed.

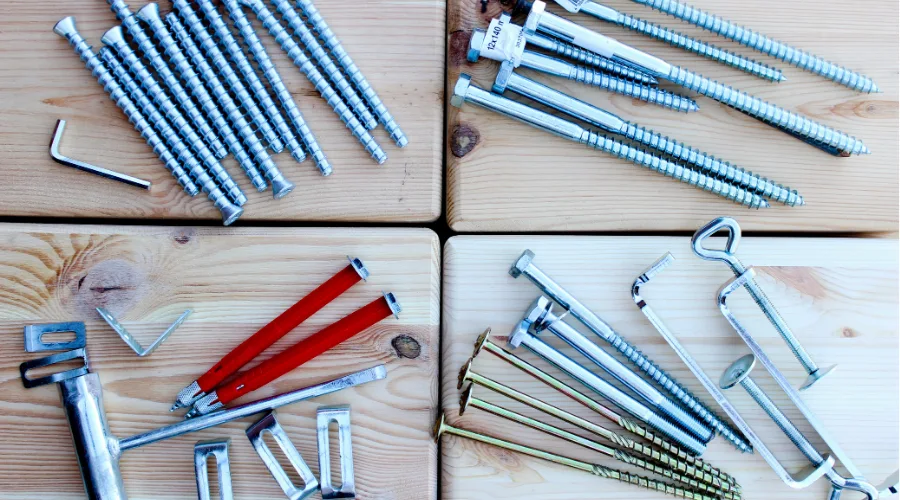

Screw Anchors
Screw anchors use aggressive threads that dig into base materials upon installation. Some do not need pre-expansion, but rather develop holding power through threading directly into materials. This configuration works especially well in block, brick and concrete uses, providing good resistance to vibrational loosening while allowing removal when needed.
Under Anchor
Under anchors develop mechanical interlocks by expanding into specially designed undercuts at bottom holes of drillings. Anchors are provided with these undercuts by specially designed drilling equipment, enabling the anchors to have positive engagement in base materials. This system produces better performance when subjected to dynamic loading, and is one of the best load capacities available in mechanical systems of anchoring.
Plastic Anchors
Plastic anchors utilise expansion concepts with flexible materials for light loads. Upon entering the plastic body with screws, the anchor expands against hole walls to build holding power in drywall, block and masonry. These affordable solutions are ideal for fixture mounting, shelving and light applications where utmost strength is not critical.
Benefits of Using Mechanical Anchors in Construction
Ease of Inspection
Simple physical and visual inspection methods are used to verify mechanical anchoring. Installers verify correct seating by ensuring anchor heads are flush with mounting surfaces, checking expansion element engagement, and verifying correct torque application. This simple verification process minimises installation errors and allows quality control during construction projects, reducing fastener failure risks and related safety issues.
High Load Capacity
Mechanical anchors’ physical locking devices provide stunning load-carrying performance, especially in shear and tension applications. High-quality expansion and wedge anchors consistently obtain holding values over several thousand pounds per fastener. Mechanical anchors’ outstanding strength makes them perfectly suited for the attachment of crucial structural members, heavy machinery, and safety components where failure of fasteners would be critical.
Reliable Performance in High-Stress
Carefully designed mechanical anchors exhibit holding capability under tough conditions such as vibration, thermal cycling, and dynamic loading. The physical locking aspects withstand loosening loads that destabilise other types of fasteners. This performance consistency renders mechanical anchors vital to machinery vibration, seismic action, and cyclic loading pattern applications, in which structural integrity via connection continues to be imperative to safety.
Versatility
Mechanical anchors support an unparalleled variety of applications by way of varied designs, materials, and activation systems. From light plastic drywall anchors to heavy-duty expansion Anchor bolts for structural concrete, mechanical anchoring products are available for nearly every construction need. This versatility also applies to base materials, with anchors designed specifically for concrete, brick, block, stone, and even hollow materials.
Applications of Mechanical Anchors in Construction
Pipeline
Mechanical anchors hold key pipeline infrastructure to concrete foundations across industrial plants. The vibration resistance and high load capacity of wedge and undercut anchors make them perfect for ensuring accurate pipe alignment despite thermal expansion, fluid movement forces, and operational vibration. Their dependability avoids expensive leaks, alignment problems, and structural damage such as cracks in harsh pipeline conditions.
Crash cushion
Motorway safety systems rely on mechanical anchors to hold crash barriers and impact attenuators on concrete foundations. Such important safety installations need to have anchors which provide holding power in the presence of severe vehicle impact forces. Heavy-duty shear-rated expansion anchors supply needed connection integrity to safeguard that safety systems operate as required in collision scenarios.
Guard Rail
Roadside guard rails demand strong anchorage to distribute impact forces securely to foundation structures. High shear strength mechanical anchors make vital connections between steel guardrail posts and concrete foundations. Fasteners withstand weather exposure, traffic vibration, and possible impact forces, so quality mechanical anchors are the ideal solution for such safety-critical applications.
Railing & fences
Pedestrian railings and security fences use mechanical anchors to attach posts firmly to concrete surfaces. Such installations enjoy easy installation procedures and instant loading capacity without cure times. Wedge anchors and concrete screws offer required holding strength for public safety barriers with durability needed for long-term exterior exposure in varying weather conditions.
Installation and Safety Guidelines for Mechanical Anchors
Proper Hole Preparation
Start with precise hole drilling with the proper bit diameter that your anchor calls for. Drain the hole thoroughly by using compressed air and brushes to remove all dust and debris. Effective cleaning enhances anchor performance by up to 25% and helps avert premature failure.
Correct Embedment Depth
Provide adequate embedment by verifying depth with a measurement device. The majority of anchors need embedment length equivalent to 8-10 times anchor diameter to provide maximum performance. Shallow depth has a substantial impact on reducing holding capacity and jeopardising installation safety.
Torque Application
Apply manufacturer-recommended installation torque using calibrated torque wrenches. Excessive torquing can distort anchors or shatter base materials, whereas light torquing decreases holding capacity. Adequate torque provides maximum expansion and the best anchor performance.
Edge Distance Considerations
Provide minimum edge distances, usually 1.5-2 embedment depths, to avoid concrete breakout failure. Too close-to-edge anchors cannot attain full capacity and can lead to cracking of concrete upon loading or installation.
Mechanical Anchors vs. Chemical Anchors: Which One to Choose?
| Factor | Mechanical Anchors | Chemical Anchors |
| Installation Speed | Fast with immediate loading | Requires curing time (hours) |
| Environmental Sensitivity | Works in the wide temperature range | Performance is affected by temperature |
| Base Material Condition | Requires sound, non-cracked material | Works in cracked concrete and variable conditions |
| Vibration Resistance | Good for most applications | Excellent for extreme vibration |
| Heavy Load Applications | Excellent in solid materials | Superior in problematic materials |
| Removal/Adjustability | Can be removed when needed | Permanent installation |
| Cost Considerations | Generally lower material cost | Higher material cost |
| Weather Conditions | Can be installed in most conditions | Limited by humidity and temperature |
| Specialized Equipment | Standard tools sufficient | Requires dispensing equipment |
| Edge Distance Requirements | Larger distances needed | Chemical anchors can be placed closer to the edges |
Conclusion
Mechanical anchors provide critical fastening solutions in a variety of construction uses, offering consistent performance through simple mechanical solutions. For your next project that demands reliable anchoring solutions, contact Brick & Bolt for professional advice and high-quality construction and mechanical anchoring. Our team of experts provides in-depth consultation services to assist in choosing ideal anchoring systems for your respective applications. Contact Brick & Bolt now to make sure your structural connections perform with durability and confidence.
