In modern construction hot rolled steel (HR steel) is an important part because of its strength, flexibility and low prices. Hot rolled sections, sheets and coils are the starting point of many structures and they are found in industrial facilities, bridges and high-rise skyscrapers. This blog covers the properties, method of manufacture, uses and rules related to hot rolled steel in the construction industry.
Understanding Hot Rolled Steel
Hot rolled steel is made by heating steel above its recrystallization temperature normally above 1700°F (927°C). At this high temperature the steel becomes more flexible making it easy to shape and form through rollers. This process improves key mechanical properties like ductility and toughness which makes HR steel more suitable for structural applications in the construction industry.
Composition of Hot Rolled Steel
Hot rolled steel normally has low carbon content especially in the case of mild steel grade that ranges from 0.05% to 0.25% carbon. This composition makes it suitable for uses that need good formability, weldability and machinability. Other than carbon, small amounts of manganese, sulfur, silicon and phosphorus are also present to improve strength and processability. Mild steel grades used for structural purposes have a balance between ductility and toughness making them suitable for beams, columns and frames.
Hot rolled steel needs to conform to the set (BIS) that is Bureau of Indian Standards regulations in order to maintain uniform quality and performance. Some of the standards are:
- IS 10748: Hot-rolled steel strip for welded tubes and pipes. This standards ensures quality for steel used in tubular and pipe applications.
- IS 5986: HR sheets and strips with higher tensile strength. Applicable where increased strength is needed.
- IS 2062: Even though the term “grade” is mostly used IS 2062 is the specification for weldable structural steel that defines different grades like E250, E350 and so on. These grades are widely used in general engineering and structural applications because of better mechanical properties and weldability.
These standards ensure that HR steel meets the mechanical and chemical property requirements essential for construction.

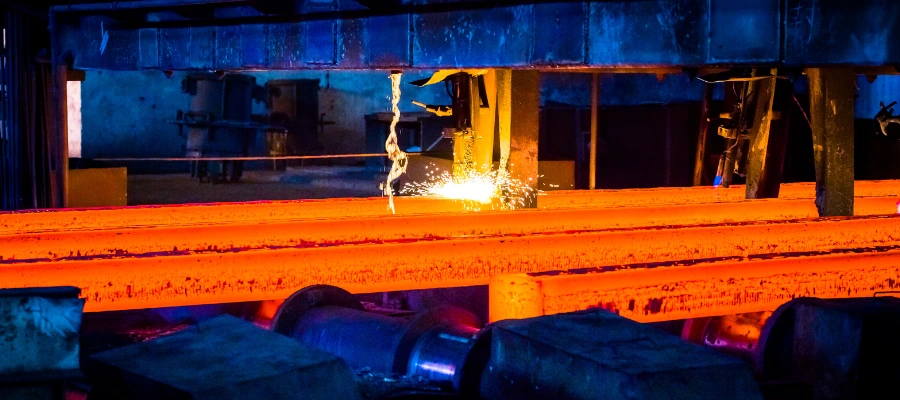

The Hot Rolling Process
The hot rolling process has a few key stages:
1. Heating: Steel bars or billets are heated in a furnace to get the needed flexibility.
2. Rolling: The heated material is thinned by moving it through rollers to form it into the right profiles like coils, sheets or plates.
3. Cooling: The steel is cooled under controlled conditions to improve its mechanical qualities.
4. Cutting and finishing: To get the final dimensions the material is cut into coils, plates or sheets.
Key Products in Hot Rolled Steel
1. Hot rolled sections: These include beams, channels, and angles commonly used in the structural frameworks.
2. HR sheets and plates: Thin, flat steel products are essential in cladding, flooring and roofing applications.
3. Hot rolled steel coils: Coils are used in manufacturing automotive components, pipes, and industrial equipment.
Advantages of Hor Rolled Steel in Construction
- Cost-effectiveness: Due to the simple nature of the hot rolled process, HR steel is less costly than cold rolled steel options.
- High strength: This steel is perfect for structural use because of its durability and load-bearing capacity.
- Versatility: HR steel can be shaped into different profiles to meet all kinds of construction needs.
- Durability: HR steel can handle extreme conditions and corrosion if it is treated properly.
Applications of Hot Rolled Steel in Construction
1. Structural frameworks: The base of buildings, bridges and industrial facilities is made up of beams, columns and trusses each of them are often made of HR steel.
2. Reinforcement bars (Rebars): Rebars made from hot rolled steel increase the tensile strength of concrete, giving pavements, structures and dams stability and durability.
3. Industrial buildings: It is used to make frames for warehouses, factories, and storage units.
4. Sheet piling: Because of its high load-bearing capacity, hot rolled steel sheets are used for foundation excavation support, cofferdams and retaining walls.
5. Infrastructure projects: HR steel can be used in highways, railways and energy plants.
6. Cladding and roofing: HR sheets and plates are used for exterior and interior panelling.
7. Pipelines: Pipes are made from hot rolled steel coils that carry liquids and gases.
8. Railway tracks and industrial equipment: It is good for heavy-duty applications, like rail systems and large machinery due to its increased toughness and resistance to wear.
9. Pre-engineered metal buildings (PEMBs): Hot rolled beams and sheets are important to modern pre-engineered buildings because they give speed and flexibility in construction.
Best Practices for Using Hot Rolled Steel in Construction
- To avoid environmental damage, use coatings like painting, galvanization or corrosion inhibitors.
- In order to avoid rust and maintain structural integrity during construction, steel should be handled and stored properly in dry and protected areas.
- Using computer-aided design (CAD) methods to improve material efficiency, reduce waste and improve structural design for correct design and fabrication.
Comparing Hot Rolled and Cold Rolled Steel
| Property | Hot Rolled Steel | Cold Rolled Steel |
| Processing temperature | Above recrystallisation point (normally > 1700°F/927°C) | Below recrystallisation point (room temperature) |
| Surface finish | Rough and scaled surface due to oxidation | Smooth and polished surface with more tolerance |
| Strength | Suitable for structural applications and are more ductile | Higher strength and hardness because of strain hardening |
| Cost | Lower, less costly for large-scale use | Higher because of the extra processing steps |
| Ductility | More ductile and easier to bend, cut and weld | Less ductile and may crack under extensive forming unless annealed |
| Applications | Beams, channels, structural frameworks and industrial equipment. | Automotive parts, appliances, precision elements and aesthetic applications |
| Machineability and weldability | Good for most construction applications | Good for precision fabrication, might need care in welding due to hardness |
| Dimensional accuracy | Less accurate because of thermal shrinkage during cooling | High precision and strict dimensional tolerance |
| Internal stresses | Low internal stress as a result of processing at high temperature | Higher internal stress and may need annealing to relieve |
Challenges and Mitigation
Hot-rolled steel is a popular material because of its strength, ductility and affordability but it also has a number of drawbacks that need to be solved for the best result and long-term durability in industrial and construction environments. The main issues and common solutions are given below:
- Surface imperfections: This material mostly has a rough, scaly surface because of oxidation during processing. The removal of surface scale and preparation of the steel for coating or other uses is done by descaling or pickling.
- Dimensional inaccuracy: Cooling after hot rolling can result in some bending and shrinkage, which reduces the precision of the dimensions. When greater limits are needed accuracy is increased by the use of precision rolling and secondary machining.
- Corrosion: Rust is going to develop on the exposed surface, especially in damp environments. Corrosion can be avoided and longevity can be increased by applying protective coatings, galvanizing or using weather-resistant finishes.
Conclusion
Hot rolled steel plays a vital role in the construction sector by offering the right balance of strength, cost-effectiveness, and versatility. From structural sections to HR sheets and coils, it serves a wide range of applications. With standards like IS 10748 and IS 5986 ensuring consistent quality, hot rolled steel continues to meet the evolving demands of the industry.
