As a skeleton gives structural support to animal and human bodies, house framing supports the entire house. It ensures that a home can withstand external weather conditions with minimal repairs over time and maintains its resale value.
This Brick & Bolt blog will help you understand all essential aspects of house framing, its types, required tools, and step-by-step procedures.
What is Framing a House?

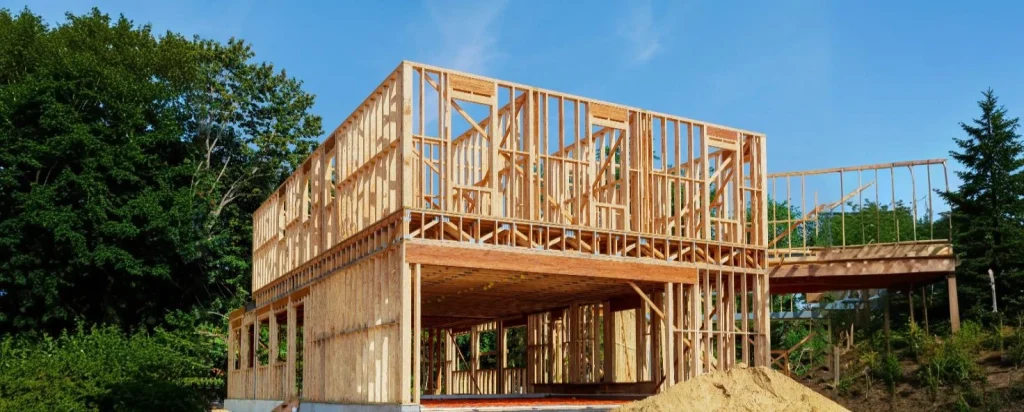

You can consider house framing as the process of creating the structural skeleton for your house to provide sufficient support to the complete building. To establish the durability and stability of the building from external elements, framing a house will involve vertical studs for walls, horizontal plates for floors and ceilings, and diagonal bracing for roofs. This house framework spreads the overall building’s weight and contents to the foundation, offering stability to the house structure.
Common House Framing Materials
- Wood
Wood is the most commonly used framing material in the Himalayan regions. Wood framing, also called stick framing, uses smaller, standardized pieces of lumber, like 2x4s or 2x6s, spaced closely together to create the structure. Common species include teak, sal, bamboo, Indian rosewood (Sheesham), and cedar. In the Himalayas, Deodar wood is especially prized for its natural resistance to decay and weathering, making it ideal for long-lasting structures such as temples and traditional houses. Wood frames are chosen for projects where cost-efficiency and speed are priorities. Wooden houses can often be constructed much faster than those made from brick or concrete-sometimes in as little as 15 days. Wood acts as a natural insulator, helping to keep heat inside and offering good energy efficiency, which is very important in cold places. It also helps absorb sound, making homes quieter. In areas where earthquakes happen often, wood-framed buildings are better because they are flexible and can handle shaking better than stiff concrete or brick buildings. Wood is integral to regional craftsmanship, with intricate carvings and decorative motifs commonly found in Himalayan architecture, especially in temples and traditional homes. In many Himalayan regions, wood is used in combination with stone (as in kath-khuni architecture), alternating layers for structural stability and aesthetic effect. In areas prone to moisture, pressure-treated wood is preferred to prevent rot and insect damage.
- Timber
Timber refers specifically to large, solid wood beams or posts used for framing. Timber frames are ideal for structures requiring significant load-bearing capacity and open interior spaces. Timber framing is often used for custom homes, barns, and outdoor buildings like pavilions, where people want strong style and a striking look. Timber frames have visible beams and posts, creating tall, open spaces that feel warm and real. The natural wood, with its grain and texture, is often left uncovered to add beauty.
Timber framing is known for being very strong and can cover wide areas without needing many inside supports, making it perfect for big, open rooms and farm buildings. Timber is a renewable material, and using timber framing is good for the environment, especially when the wood comes from well-managed forests. Timber also traps carbon, helping lower harmful gases in the air.
Timber frames make it easy to create different types of floor plans and styles, from traditional to modern. The open design gives more freedom to arrange the inside spaces creatively. Like other wood buildings, timber frames also offer great insulation, helping make homes energy efficient. Prefabricated timber components can speed up the assembly process, resulting in quicker project completion times.
- Steel
Steel framing offers superior strength, resistance to mould and rot, and longevity. However, it is more expensive and less energy-efficient compared to wood. Light gauge steel framing is gaining popularity in India due to its durability and shorter construction timelines.
- Structural Insulated Panels
These are prefabricated panels made from rigid boards and come fitted with foam insulation. They make construction on-site much easier because you don’t have to build the frame piece by piece, as the actual frame doesn’t need to be assembled from scratch. These panels give very good insulation, but they are also very costly, so many people may not be able to afford them.
- Concrete Block Framing
You can consider this as a concrete masonry unit (CMU) framing. Here, you will build by using concrete blocks to build walls and, at times, the house’s structural elements.
- Insulated Concrete Forms
ICFs are made of lightweight foam form on-site, to later fill the form with concrete. This process significantly reduces construction time and leaves you with a highly insulative house frame. This option is also very costly.
Different Types of House Framing Methods
There are two major types of building framing, each suited for specific construction needs: heavy framing and light framing.
Heavy Framing:
This uses fewer but larger and stronger vertical supports, like timber framing, pole buildings, or steel frames.
Light Framing:
This uses many smaller vertical supports. Examples include balloon framing, platform framing.
Types of Wooden Framing Methods Used in House Framing
The following are the common types of wooden framing methods used in house framing.
Platform/Western Framing:
It involves boxed-sill construction at each floor line. Here, cross-bridging will be used between the joists, and bridging will be used between the studs. The platform frame method is often suitable only for one-story structures. It permits both the bearing and nonbearing walls, which are supported by the joist, to settle uniformly. This will take shorter, less expensive lumber lengths and make the construction easier. This was the most common method used in modern residential construction.
Balloon Framing:
This method is useful to construct multi-story buildings. Here, the framing members, or studs, extend from the foundation to the full height of the building stories. This complicated technique requires pricey and longer lumber. This method can impose larger wall cavities, potentially increasing the fire risk. Balloon framing is a more intricate construction method.
Braced Framing:
In this type of frame, the outer vertical wooden pieces, called studs, extend from one floor to the next. Horizontal beams, known as girts, are placed on top of them to support the floor above. Most parts of a braced frame, except for the studs, are thicker and heavier compared to those in a balloon frame. The bottom beams, called sills, and the corner posts are also made sturdier. The corner posts run from the bottom sill to the top beam, known as the plate. Diagonal wooden pieces, called knee braces, are added on both sides of the corner posts to strengthen the frame.
Essential Framing Tools List & Materials Needed for Framing
To complete the framework successfully, you need the following essential tools and materials:
Power tools: Circular saws, pneumatic nail guns, power drills, reciprocating saws, and pneumatic nail guns.
Hand tools: Carpenter’s pencils, framing hammers, Levels, measuring tape, Speed squares
Materials:
- Lumber: 2×4 and 2×6 for framing walls and floors.
- Plywood/Sheathing: Provides structural support and insulation.
- Nails/Screws: Hold the frame together.
- Joist Hangers: Secure joists to beams.
Step-by-Step Guide to Framing a House
For building framing to build a house, you need to follow the following common steps:
Step 1: Get the Essential Permits
Get help from experts to understand local building codes and get the essential permits for your residential framing project. It is best to recruit professionals with sufficient experience and skills.
Step 2: Laying the Foundation & Sill Plates
Measure the intended floor location and set up layout lines. Verify whether the foundation is level and properly cured. This will help ease the next steps to maintain the durability of the structure. Ensure that the sill plates are square to maintain structural integrity. Attach pressure-treated sill plates (mud sills) to the foundation using anchor bolts. These plates serve as the base for the entire frame and prevent moisture damage. You need to use a sill seal between the sill plates and the foundation to create a moisture barrier, protecting against water infiltration.
Step 3: Floor Framing
Joists Installation: Install rim joists on top of the sill plates and fasten them securely. Install floor joists perpendicular to the rim joists, spaced 16″ or 24″ on center for uniform load distribution.
Subflooring: Cover the joists with subflooring made of plywood or oriented strand board (OSB). Nail or screw it tightly to ensure stability and create a solid base for construction above. Seel the floor joists with the subfloor material, which is made of 3/4 or 5/8 inch plywood or oriented strand board (OSB). You can make use of wooden screws to join the subfloor sheets to the joists securely.
Step 4: Wall Framing
Wall Section Form: Start working on wall frame structures. Here, you will be going to use studs, top plates, bottom plates, and headers for window and door openings. Studs will be generally spaced 16″ or 24″ in the center.
Bracing & Sheathing: Add diagonal bracing or sheathing (plywood or OSB) to ensure lateral stability. Sheathing also serves as a base for exterior finishes.
Rough Openings: Frame rough openings for doors and windows using headers, king studs, jack studs, and cripple studs.
Step 5: Roof Framing
For roof framing, you have two options
1. Rafters: You will build this roof frame on the site. It will require you to cut and install, freshly taking your efforts.
2. Trusses: These are prefabricated, pre-engineered building components that offer wider spans and are often more cost-effective.
Attach ridge boards and rafters or trusses securely. Cover with roof sheathing to create a weather-resistant surface.
Step 6: Installing Windows & Doors
Rough Openings: Ensure proper framing for windows and doors with headers to support loads above.
Sealing: Air-seal gaps around rough openings using caulk or spray foam to minimize air leakage. Proper sealing enhances energy efficiency.
Installation: Place windows and doors carefully into their openings, ensuring they are level and square before fastening them securely.
Tips for Weatherproofing Your Frame
When you are framing a house with wooden materials, you need to be more careful against moisture elements to extend your home’s lifespan. You can consider the following weatherproofing tips:
- Consider including proper flashing around the house’s openings (windows, doors, etc) to stop water from entering.
- Make sure there is good airflow in the attic to keep it dry.
- Waterproof the building from the outside walls to constrain water.
- Use treated wood in areas that touch the ground, as it resists rot and insects.
House framing is a major aspect of your home construction. You need to work with an experienced architect or a construction company to plan, use quality materials, and execute perfectly and carefully. Make use of innovative materials and suitable techniques for better efficiency and performance of your framed structure.
