Cone Penetration Testing (CPT) is a crucial geotechnical method used to obtain quick and accurate subsurface data without disturbing the site. Unlike traditional testing methods, CPT provides continuous soil profiles and delivers highly precise results.
With the rapid growth of construction, commercial buildings and infrastructure projects, CPT has become increasingly important in various applications, particularly in foundation design, soil liquefaction assessment, and environmental impact studies.
Today, CPT technology plays a key role in identifying weak soil strata and detecting even the smallest changes in subsurface conditions. Its speed, accuracy, and cost-effectiveness make it an essential part of modern geotechnical and soil investigation methods, helping ensure safer designs, timely project delivery, and better resource management.
What is the Cone Penetration Test?
The cone penetration test is a geotechnical in-situ test that relates soil conditions by inserting a conical probe equipped with sensors into the soil at a certain speed. Normally, a cone in the CPT has a 60-degree angled tip and a 10 cm² base with rods tied to it.
Throughout the movement of the cone in the ground, the sensors embedded in the cone record the data on the end bearing resistance, the side friction, and, in some cases, the pore water pressure. This is immediately transmitted to the surface monitoring system. It is the case that the Cone Penetrometer Test (CPT) method is highly valuable when obtaining soil profile information without any disturbance and tedious operations throughout the process.
The test is very effective at identifying thin or even very thin soil layers and contact points between different materials, thus it reveals a very smooth stratigraphy, which may not always be visible with traditional drilling techniques. The CPT results provide the soil type, strength parameters, and behavior characteristics, besides other geotechnical risk assessment aspects necessary for foundation design and site development without making any changes in the natural material composition.
Application of the Cone Penetration Test
CPT is used in various applications in geotechnical engineering and environmental industries.
- In basement foundation design, CPT information is utilized to calculate bearing capacity, estimate settlement potential, and optimize foundation types depending on true subsurface conditions instead of conservative estimates.
- Highway, railroad, and bridge infrastructure projects are aided by rapid CPT profiling, which identifies weak areas and objectionable ground layers along planned routes, enabling modifications to the design before construction begins.
- Environmental surveys depend on specialized CPT gear to identify contamination limits, detect impermeable layers that may confine pollutants, and identify groundwater conditions that are critical to remediation planning.
- The test is most valuable for offshore use, where platform foundation design requires accurate seabed types of soil characterization under adverse conditions.
- Liquefaction susceptibility evaluation is one of the most important uses of CPT, especially in seismic areas. The real-time data enables the accurate detection of loose, water-saturated sandy layers that can lose strength during earthquakes.

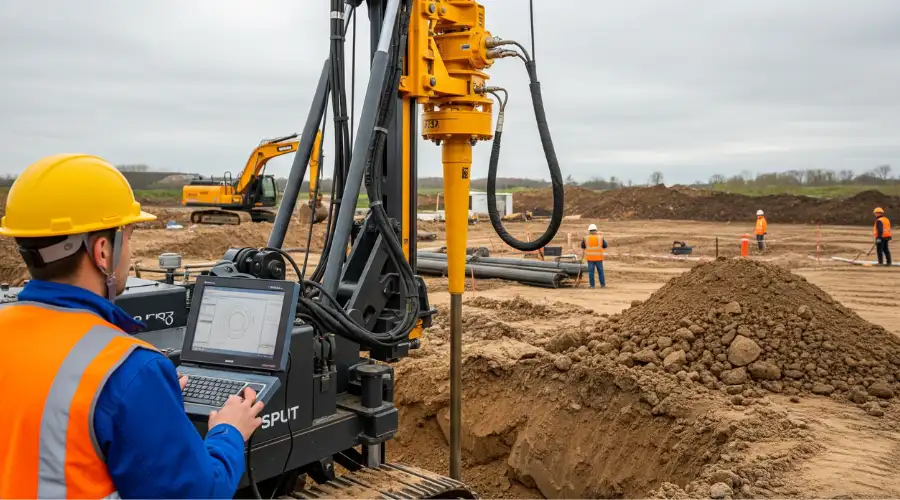

Benefits of Cone Penetration Test
Some ideal benefits of a cone penetration test are as follows:
- Faster Testing: CPT enables multiple tests per day with instant data delivery—no need to wait for lab results.
- Cost-Efficient: Fewer site mobilizations and reduced field time lower the overall cost of investigation.
- Continuous Data: Unlike traditional sampling, CPT provides uninterrupted soil profiles, capturing even thin layers and minor changes.
- Improved Accuracy: Detailed data enhances design reliability and minimizes the risk of costly over-design.
- Minimal Site Impact: The test causes very little ground disturbance, ideal for environmentally sensitive or contaminated sites.
- No Drilling Fluids Needed: CPT avoids soil cuttings and reduces the chance of cross-contamination between layers.
How CPT Works?
The cone penetration test works on basic mechanical principles with electronic precision. Hydraulic thrust systems on specialized vehicles push the cone at a steady 2 cm per second, ensuring consistent data across depths. Load cells in the probe measure the tip resistance and sleeve friction to assess the soil’s strength and type.
In CPT tests, pressure transducers measure pore water pressure to gain insights into soil drainage and permeability. Data is recorded at intervals of 2 to 5 cm, generating detailed subsurface profiles. The ratio between sleeve friction and tip resistance helps in identifying soil types.
Components of a CPT System
Penetrometer: The Core of the CPT System
A full cone penetration testing system consists of advanced equipment for effective field operations and accurate data acquisition. The penetrometer is the heart of the system, a conical, standardized probe with electronic sensors encapsulated inside a hardened steel casing.
Standard cones have a cross-sectional area of 10 cm², although 15 cm² models are available with increased durability for challenging soils. Calibrated load cells that sense tip resistance and sleeve friction with generally more than 1 kPa sensitivity are accommodated within the probe.
Thrust and Reaction Systems
The thrust mechanism applies controlled force via hydraulic systems with 10–20 tons of push capacity. The system is installed on vehicles from heavy trucks for optimal depth capacity to light tracked carriers for penetrating difficult terrain.
Reaction mass—normally the vehicle weight plus anchors or ballast—opposes the push force to achieve penetration depths from 15 meters in portable systems to more than 40 meters in truck-mounted systems.
Data Acquisition and Monitoring
The data acquisition system acquires, processes, and stores measurements using specialized software and hardware. Field computers provide real-time display of data while testing, enabling technicians to view progress and detect anomalies in real time.
CPT Procedure: Step-by-Step
Site Preparation
The cone penetration test follows a systematic procedure that ensures consistent, reliable results across different sites and conditions. The process begins with careful site preparation, including identifying underground utilities through locator services to prevent dangerous strikes during testing.
Technicians then position the CPT rig on level ground, extend stabilizers to prevent movement during testing, and align the thrust system perpendicular to the ground surface to ensure vertical penetration.
Equipment Setup
Equipment preparation is done by carefully inspecting the cone penetrometer, verifying sensors against calibration levels, and ensuring data system function. Clean pushing rods are assembled by technicians and the data acquisition system is prepared with correct project details and test parameters. The cone is placed on the ground surface, setting the reference zero-depth in the data system.
Testing and Data Collection
During testing, hydraulic systems push the cone along at the typical 2 cm/second rate while computers constantly take measurements. Operators watch real-time data displays for irregularities that could suggest obstructions or machinery issues. More rod sections are added as penetration is ongoing, and testing usually continues until the target depth or refusal is reached.
Conclusion
Cone Penetration Testing (CPT) has revolutionised the way geotechnical investigations are conducted, providing precise, real-time subsurface data without the delays and disruptions associated with traditional methods. At Brick & Bolt, we integrate advanced CPT technology into our site evaluation process to make smarter, safer, and more cost-effective decisions from the ground up.
