Have you ever reviewed a building blueprint and encountered terms such as “concentrated load” without fully understanding their meaning? It is necessary to know them mainly for the aspect of the correct distribution of weight. Such knowledge is really important regardless of whether you are building your dream dwelling or taking care of a construction project at Brick & Bolt, as it is the basis for a stable and safe home.
Concentrated loads are powerful forces that can cause a huge change in your building’s stability and lifeline. This blog will explain what they are, how they work, and why they matter so that you can make wiser and safer construction decisions.
What is a Concentrated Load?
A point load, also known as a concentrated load, is a concentrated force that acts over a small region of a structure. It behaves like it’s coming from a point, but it is originating from a path carrying some amount. E.g., the column load acting on the beam, or a generator on the roof slab, are all considered as concentrated loads.
This kind of load induces stress into a small portion of a structural member and is very important in the design of beams, slabs, or even foundations. In contrast to uniformly distributed loads, concentrated loads may impart higher bending moments and forces at particular locations of a structure.

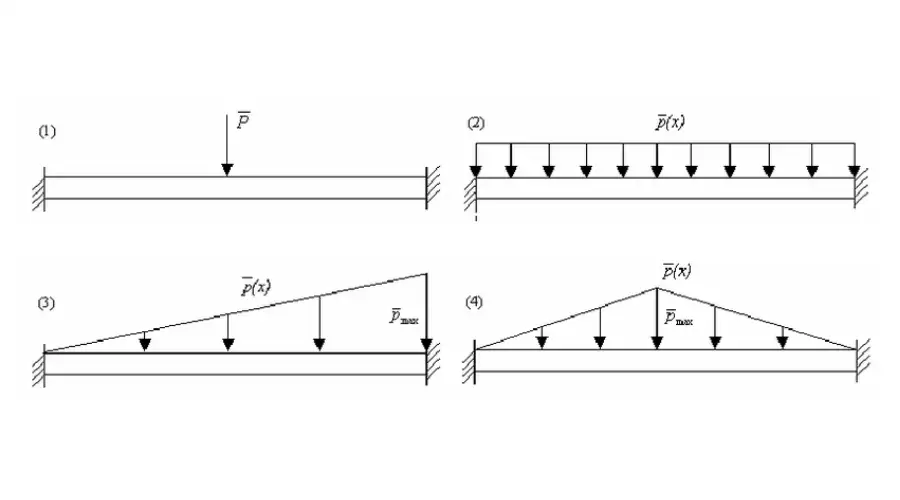

Types of Concentrated Loads
Concentrated loads, often referred to as point loads, are forces applied to a specific area or point of a structure. These loads are categorized based on their direction and application,
1. Vertical Concentrated Loads
These loads act downwards, such as the weight of a column on a beam or a person standing on a floor. They are the most common type and are critical in load-bearing design.
2. Inclined Concentrated Loads
These loads act at an angle, applying both vertical and horizontal forces. They are often seen in slanted beams or structures subjected to diagonal forces.
3. Horizontal Concentrated Loads
These forces are applied horizontally, such as wind pressure on a wall or the pulling force from a cable, affecting the lateral stability of the structure.
4. Eccentric Concentrated Loads
Applied off-center, these loads cause both a force and a moment, leading to bending in addition to direct loading.
5. Single Node and Element Loads
These loads are applied at a specific node or to a particular element, often including moments, to simplify structural analysis and calculations.
Each type requires precise consideration in structural load for safety and performance.
Typical Locations of Point Load Application in Structural Systems
Concentrated loads show up in many places on a job site,
- Beams under columns: Where the vertical loads from the upper floors pass down and become a point force on the supporting beams through the columns.
- Supporting equipment pads on slab: Rooftop equipment such as generators, tanks, or solar inverters impart concentrated or patch loads through their anchoring points onto slabs.
- Brackets and cantilevers: Wall-mounted balconies, signage, or projections impose eccentric point loads via small brackets, threaded rods, or cantilevered members.
- Racking systems: The narrow legs of pallet racks or shelving units concentrate heavy vertical loads on small slab areas.
At Brick & Bolt, we routinely consider these factors during the design phase, ensuring each concentrated load is safely accounted for in structural plans.
Impact of Point Load on the Structure
- Stress Concentration: The occurrence of point loads at a certain location causes stress concentration, i.e., shear stress and bending moments.
- Deflection: The transcendent point loads result in deflection in the beam, causing it to lose its rigid shape.
- Structural Integrity: If point loads appear very often or are too high, they can lead to metal fatigue and, finally, deformation of the structure.
- Foundation Settlement: The application of large point loads dispensed in the foundation of a building will cause the foundation to subside unevenly, hence producing cracks or tilting in the structure.
For better management of these undesirable impacts and ensuring the soundness of the structure, the design and the reinforcement must be secured accordingly.
Factors to Consider While Designing for Concentrated Loads
When dealing with concentrated loads, engineers must consider,
- Load Duration: Loads can be live or dead load. Short-term loads may be accepted with a reduced factor of safety; however, long-term or permanent point loads require more conservative design criteria to avoid fatigue and creep
- Material Strength and Behavior: Different materials—like concrete, steel, and timber—have different properties when it comes to resisting bending, shear, and compression. For example, reinforced cement concrete may resist vertical loads better than plain masonry but may still crack under a sharp, localized point load if not properly reinforced.
- Support Conditions: Whether the structural element is simply supported, fixed, or continuous changes how the load is distributed. A live load on a cantilever will produce very different stress and moment distributions than one on a simply supported beam.
- Load Position: A load at the center of a span produces the maximum bending moment, while one near the support creates more shear. Proper positioning of reinforcements and load paths is essential.
- Redundancy and Structural Integrity: Good designs include fallback systems. For instance, adding secondary beams or hidden reinforcements ensures the structure holds even if a primary load-bearing point weakens.
- Load Combinations: Point loads don’t act alone. They are usually added with UDLs, wind loads, earthquake forces, thermal loads, etc. The combination of these forces, as per IS 875 and IS 456, is designed to prevent any failure in your framed structure.
- Area of Contact: The stress concentration increases as the area of contact decreases. Such a concentrated load can be spread over more ground by using spread footings or the like in a load spreading plate
- Deflection Control: Noticeable deflection under point loads may be induced in slender beams or slabs. Over-deflection affects not only appearance, but also function and safety.
These are carefully examined in Brick&Bolt’s project evaluations to ensure they are code-abiding and long-lasting.
Concentrated Loads vs. Distributed Loads
| Feature | Concentrated Load | Distributed Load |
| Area of application | Single point | Spread over length or area |
| Effect on the beam | High local stress | Even stress distribution |
| Calculation complexity | High | Moderate |
| Design risk | Sudden failure if miscalculated | Gradual deflection |
| Example | Column on a beam | Floor slab weight |
| Load application method | Typically, through base plates or fixtures | Via uniformly layered materials |
| Structural design focus | Reinforcement at a specific point | General section sizing |
| Inspection priority | Check for stress concentration, cracking | Check for deflection and span behavior |
| Repair type | Local strengthening or jacketing | Surface treatments or slab thickening |
Conclusion
A point load, though concentrated over a small area, exerts significant force. Whether it’s the columns supporting a bridge or portable machinery shaping metal, these forces demand precise calculations and meticulous design. At Brick & Bolt, we ensure that every type of load, whether concentrated or distributed, is thoroughly analyzed by our expert structural engineers. With our attention to detail, your structure will stand strong, supported by a solid foundation, from the ground up. Trust us for a robust and safe construction process that withstands the test of time.
