Drainage pipes are applied in water diversion from farms, houses, roads, and industries. They assist in averting water congestion, leading to damage or flooding. Different materials are utilised in the production of drainage pipes, for example, PVC, HDPE, Concrete, and cast iron. All serve a unique function and perform optimally in certain regions. This guide describes drainage pipes, type of pipes, what kind you can install, where to place them, and how to install and maintain them.
Overview of The Drainage Pipe
A drainage pipe is a crucial component in plumbing and infrastructure systems, designed to efficiently remove excess water or wastewater from residential, commercial building, industrial, and agricultural areas. Its primary function is to prevent waterlogging, soil erosion, and structural damage by channeling water to designated discharge points such as sewers, storm drains, or soak pits.
Drainage pipes are typically manufactured from materials like PVC (Polyvinyl Chloride), HDPE (High-Density Polyethylene), or Cast Iron, depending on the application and environmental conditions. The diameter of these pipes can vary significantly:
- Around 50 mm for small internal household drains (e.g., sinks and basins)
- Up to 600 mm or more for large municipal or industrial drainage networks
To ensure proper flow, drainage pipes are installed with a gradient (slope) typically ranging from 0.5% to 2%, enabling gravity to transport water efficiently. The carrying capacity of a drainage line is calculated based on the anticipated water volume, usually expressed in liters per second (L/s) or cubic meters per hour (m³/h). For optimal performance and longevity, proper installation practices, including joint sealing, bedding, and alignment, along with routine maintenance, are essential to prevent blockages, leakage, or structural failure.
Types of Underground Drainage Pipes
The underground drainage pipes are constructed of a wide range of raw materials, with each material having a particular use-case to which it is suited the best. Most common types include:
- Polyvinyl Chloride (PVC) Pipes: PVC pipes have a weight ratio that is smaller compared to other materials. Besides being best suited for corrosion problems, they are also compatible for use in both home and industrial drainage systems. They are suitable for transporting various materials, e.g., soil, waste, and rainwater. Other than that, PVC pipes are not only pocket-friendly but also can be easily installed, and thus, they are the most commonly used pipes for general drainage purposes.
- High-Density Polyethylene (HDPE) and Polyethylene (PE) Pipes: Polyethylene (PE) pipes, particularly High-Density Polyethylene (HDPE), are widely used in drainage systems due to their flexibility, durability, and corrosion resistance. These properties help reduce the risk of pipe breakage or degradation over time, even in harsh environmental conditions. Their high chemical resistance makes them especially suitable for applications involving industrial waste or chemically treated water. Due to these advantages, PE and HDPE pipes are a reliable option for both residential and industrial drainage systems.
- Polypropylene (PP) Pipes: Polypropylene is a robust and highly chemical-resistant material. PP pipes are commonly used in the sewerage and industrial sectors due to their strength, flexibility, and resistance to aggressive chemicals. The flexibility of the pipe lets it easily adapt to any soil or land movement pressure, thereby not forming any breaks or leaks.
- Cast Iron Pipes: Known for their strength and durability, cast iron pipes are often used in commercial and municipal environments where heavy-duty drainage is required. They are ideal for high-pressure applications, offering a long-lasting, robust solution. Cast iron pipes are resistant to corrosion but tend to be more expensive and require specialized installation techniques. They are also heavier than other materials, making them less common in residential settings.

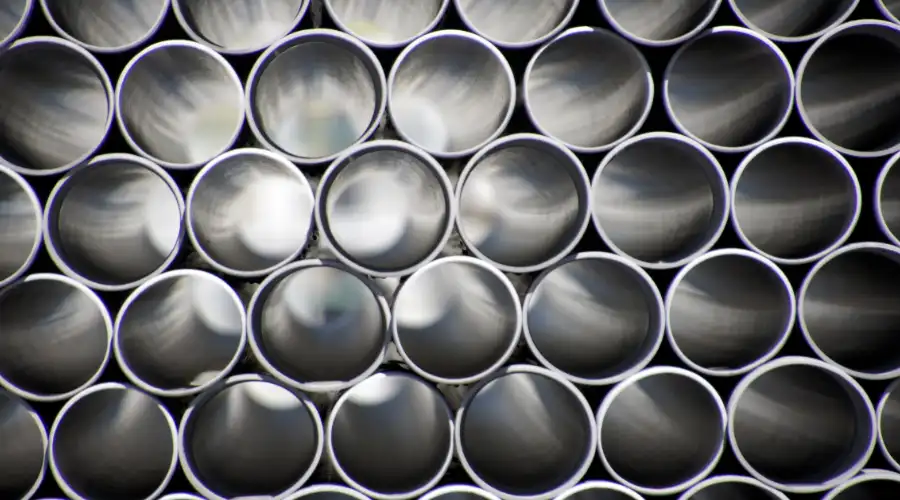

Advantages and Disadvantages of Drainage Pipes
Drain pipes have both advantages and disadvantages as they provide proper management of wastewater, but with it come problems of clogging and expense in installation.
Advantages
- Effectively removes water from buildings and structures, avoiding waterlogging and damage to structures.
- Reduce the risk of flooding and limit the chances of soil erosion.
- Helps in maintaining structural integrity, avoids water damage to the foundation, and offers lasting infrastructure.
- They are low in maintenance and flexible, hence they prolong pipe lifetime. Therefore, they can be utilised in various ways.
- In urban and residential area, drainage pipes remove wastewater and sewage, promoting public health by preventing stagnant water and related diseases.
Disadvantages
- Clogging problems like grease, roots, or garbage stuck inside the pipe can affect the flow.
- Expensive to install, materials like concrete or cast iron are highly expensive because of their heaviness and labour requirements.
- Plastic pipes are susceptible to cracking in overload conditions.
- Requires frequent monitoring to prevent sudden leakage or failure.
Key Application of Drainage Pipes
Drainage pipe systems are used in several areas to move unwanted water more safely and quickly. They can be used both in companies and in households. Some of the common applications include:
1. Building Drainage
Drain pipes are employed to drain the sewage water coming from the shower, toilet, and sink within a building. They ensure that the sewage does not move in the wrong direction and also help to achieve a hygienic and clean facility.
2. Stormwater Management
Some pipes flow rainwater from the roof to flat areas or underground. They prevent flooding and soil damage by draining the large water bodies that accumulate due to rain.
3. Drainage in Farms
Excess water damages crops, and hence, drainage pipes are employed to drain excess water from agricultural fields, keep the soil healthy, and allow plants to grow well.
4. Sports Field Drainage
Drainage pipes are used in the majority of sports grounds, which require proper drainage to keep them dry and suitable for conducting games and events.
5. Road Drainages
These are placed under the roads and highways to drain water that accumulates on roads, help to maintain cleanliness, and ensure drivers’ safety.
Things to Consider While Choosing the Underground Drainage Pipe
One of the things that one must pay attention to while selecting an underground drainage pipe is the right pipe to meet the purpose of the drainage system. Here are the factors that need to be considered while purchasing the drainage tubes:
- Fittings: The fittings that are used in the drainage system, e.g., tees, elbows, and couplings, play an integral part in directing the water in the right flow direction, as well as helping to connect and align the pipes perfectly. The correct fittings allow for both the management of the water flow and the transitioning of the pipes in a hassle-free manner.
- Pipe Material: In the past, drainage pipes were manufactured from metal. These had many advantages, such as being hardy; however, the problem with them was that they rusted over time. However, today, modern pipes, e.g., PVC, PE, and PP, which are lighter, more potent, and no longer rust, are the type of pipes that are being adopted. The above materials are preferred due to being sturdy, anti-corrosive, and easy to conduct seaming at the stage of installation.
- Pipe Diameter: The capacity of the drainage pipes is the most important thing, as it is the direct factor that affects their performance. For instance, for small buildings, small pipes are recommended, whereas big ones are the best solution for a large building, even if they are used in a factory, industrial facility or commercial complex. Selecting the right diameter is the key to the effective handling of the water without creating any blockage in the system.
- Pipe Slope: For water to flow by itself without the use of pumps, drainage pipes require a gentle slope of approximately 0.5 to 2%. This method ensures that the drainage network is functioning properly and that water is not allowed to accumulate, thereby reducing the likelihood of clogging.
- Inlets and Outlets: Inlets are places where water from buildings or the ground enters the drainage system, and outlets are channels through which the water is directed to the desired points of discharge. The correct positioning and the right size of both the inlets and outlets are essential factors in the system’s total efficacy.
- Ease of Installation and Maintenance: The lightweight characteristics of plastic pipes, such as PVC, make them easier to transport, install, and maintain. In contrast, cast iron pipes have a long life, especially if used in industrial applications. Additionally, apart from the ease of installation, it is also important to remember the need for regular maintenance to ensure the system operates smoothly in the future.
With the knowledge of these features and the proper materials and elements, the underground drainage system will meet the needs of both proper water management and long-term performance.
Installation Process of Drainage Pipes
Placing a drainage system assists in directing excess water away from your building, yard, or driveway. This is how you can accomplish this in a simple manner:
Observe the Ground: Observe the ground’s level, soil type, and the amount of rain it gets. This supports choosing the right drainage system.
Layout Planning: Choose the position of pipes and drains. Ensure water flows freely from the top to the bottom region.
Install Pipes in Trenches: Dig trenches for the required depth, fit the pipes into the trenches and use sealant to join the pipes.
Drainage Channel and Outlets: Fit drainage channels with concrete, stone, or plastic to fit in the proper slope. Install outlets in the required place, as they capture the water and direct it to pipes.
Maintenance and Cleaning: Frequently monitor the whole system after installation to avoid leakages and improper working.
Tips for Effective Drainage Pipe Installation
The pipe is going to be inclined slightly downhill so that water will not become clogged. A precise slant prevents water from accumulating close to your house. Select strong materials, such as iron or concrete, for use in areas with heavy water flow. They are strong and suitable for most homes. Inspect and drain your drainpipes periodically. This prevents clogging and keeps the water running in the correct direction. Hiring professionals will result in a neat installation and a perfect drainage system.
Conclusion
Drainage pipes play a big role in preventing sites from becoming wet and unhygienic. These systems are very helpful in controlling wastewater and stopping floods caused by heavy rain. If the right pipe is chosen and installed correctly, the drainage system works excellently without causing trouble. After installation, inspect it regularly and maintain it properly under the guidance of an expert. Perfect drainage means a cleaner, healthier environment!
