Land measurement is an important aspect of real estate development and property maintenance. It is the process of determining the size, boundaries, and area of a specific plot of land. Proper land measurement is a critical element in property valuations, taxation, legal documents, and conflict resolution.
In India, the differences in land measurement units and processes require the stakeholders to know the standards and processes that inform this process. The article provides a brief overview of land measurement, from the units used in India to the equipment and processes employed, as well as the importance of accuracy in the field.
What is Land Measurement?
Land measurement is the method used to determine the size and boundaries of a specific plot or tract of land. The method is crucial in determining legal ownership, constructing projects, and verifying compliance with government requirements. Moreover, accurate land measurement helps maintain the integrity of property registration and records, thereby preventing conflicts and facilitating smooth property transfers. The method may be as basic as manual measurement for small tracts and as sophisticated for use in larger or complex land tracts.
Importance of Accurate Land Measurement
Precise land measurement is crucial in the construction industry for various reasons.
- It ensures that the boundaries of property are accurately recorded to prevent encroachment and legal disputes.
- It needs accurate measurements for effective site layout, resource allocation, and placement of infrastructure.
- Precise area calculations are required for contract administration and material procurement budgeting.
- Adequate boundaries help resolve boundary disputes and minimize the risk of litigation.
- Government regulatory authorities need correct land information to approve building plans and issue occupancy certificates
- Measurement errors in land can lead to project delays, financial loss, and fines from the authorities.
- Accuracy in technical practice and compliance with set standards are therefore critical in all phases of construction and property development.
What are the Land Measurement Units in India
India utilizes a wide range of units of land measurement, including standard units and regional units.
Standard Units
The widely used standard units for land measurements are as follows:
- Square Meter: The square meter (sq m) is a SI unit for area, commonly used in urban planning and formal documents.
- Square Foot: Square Foot (sq ft) is widely applied in residential and commercial real estate transactions.
- Acre: An acre, mostly used for farming, is equal to 4,046.86 square meters or 43,560 square feet.
- Hectare: For extensive areas, one hectare is equivalent to 10000 sq m or 2.471 acres.
Regional Units
Regional units are still common to most states.
- Bigha: Bigha varies from state to state (e.g. 1 bigha ≈ 2500 to 2700 sq m in Uttar Pradesh, in West Bengal 1 ≈ 1338 sq m).
- Katha: Katha is used in Bihar, Assam, and West Bengal. 1 katha may vary from 67 sq m to 136 sq m based on the area.
- Gaj: Gaj is equivalent to 1 sq yd or 9 sq ft and is used in North India.
- Marla: Marla is used in Punjab and Haryana. 1 marla = 25.2929 sq m.
- Cent: 1 cent in South India is 40.47 square meters.
- Ground: Ground is used in Tamil Nadu and Kerala. 1 ground = 2400 sq ft.
Conversion between these units is necessary for common documentation and legal purposes. For instance, 1 acre = 100 cents = 4840 sq yd = 43560 sq ft. The variability of the units necessitates thorough consideration during property transactions to ensure congruence and avoid legal conflicts.

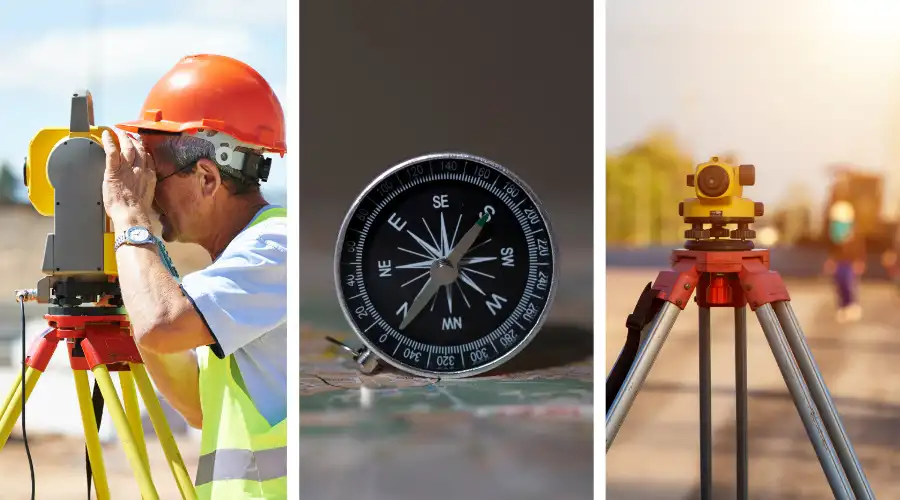

Types of Land Measurement Techniques
Land measurement techniques have evolved from basic manual tools to sophisticated digital instruments that ensure high precision in modern real estate and infrastructure projects. The choice of technique depends on several factors such as the size of the land parcel, required accuracy, available technology, terrain, and purpose of measurement (legal documentation, cadastral mapping, construction, or valuation).
Below are the major types of land measurement techniques used in India, with a detailed explanation of each method, its instruments, process, applications, and pros and cons.
1. Chain Surveying
Chain surveying is one of the oldest and simplest methods of measuring land. It relies entirely on linear measurements taken between different site survey points. This method is suitable for relatively small, flat areas with minimal obstructions.
Process:
Surveyors stretch a steel or metallic chain between two points and take linear measurements. Offsets are taken to capture features located at a right angle from the baseline. The data is then used to prepare rough field sketches or maps.
Instruments Used:
- Surveyor’s chain (20m or 30m) – main tool for linear distance.
- Ranging rods – used to mark straight lines.
- Measuring tape – for smaller or irregular distances.
- Arrows and pegs – for marking measured points.
- Cross staff – for setting right angles.
Use Cases:
Ideal for residential land plots, boundary markings for gardens or farmlands, and smaller development sites where precise angular measurements are not necessary.
Pros:
- Cost-effective and easy to use.
- Requires minimal equipment and setup time.
- No need for complex calculations or software.
Cons:
- Accuracy is limited over longer distances.
- Not suitable for undulating or forested terrains.
- Human error during alignment and chaining can impact results.
2. Compass Surveying
Compass surveying introduces angular measurement to traditional distance-based methods. It determines the direction or bearing of lines using a magnetic compass, making it useful in mapping areas where orientation is essential.
Process:
The prismatic compass is used to measure the magnetic bearings of survey lines. These bearings are used alongside linear distances to draw accurate field sketches. The process often includes traversing to cover larger land areas.
Instruments Used:
- Prismatic compass – measures magnetic bearings.
- Tripod stand – provides stability to the compass.
- Measuring tape – for calculating line lengths.
- Field book and ranging rods – for recording and aligning measurements.
Use Cases:
Common for angular measurement in moderately uneven terrains, rural land demarcation, and exploratory surveys in new development zones.
Pros:
- Adds directional and angle accuracy to distance measurements.
- Suitable for irregularly shaped tracts.
Cons:
- Susceptible to magnetic interference from metal objects or electrical lines.
- Lower precision compared to modern equipment like total stations.
- Requires correction for magnetic declination.
3. Plane Table Surveying
This is a graphical method of surveying where the surveyor plots measurements directly onto a drawing sheet in the field. This allows for immediate visualization and correction of errors during data collection.
Process:
A plane table mounted on a tripod is used to support the drawing sheet. Using an alidade (a sighting tool), surveyors sight objects and draw rays and distances on the paper to scale in real time.
Instruments Used:
- Plane table – serves as the base for drawing.
- Alidade – used for sighting and drawing lines.
- Tripod – supports the plane table.
- Compass and sprit level – for orientation and leveling.
- Plumb bob – ensures vertical alignment of the table.
Use Cases:
Used in preliminary site analysis, contour maps, archaeological sites, and topographical surveys where quick, on-site maps are needed.
Pros:
- Direct mapping reduces transcription errors.
- Real-time plotting allows immediate data validation.
- Useful for educational, illustrative, and reconnaissance surveys.
Cons:
- Not ideal for very large or sloped areas.
- Affected by weather conditions like wind or rain.
- Requires manual drawing skills and steady hands for accuracy.
4. Theodolite Surveying
Theodolite surveying is a highly precise method that measures both horizontal and vertical angles. It is particularly effective in triangulation and topographic surveys where accuracy in angle measurement is critical.
Process:
The theodolite is mounted on a tripod and centered over a known survey point using a plumb bob. Angles between reference points are recorded by rotating the telescope horizontally and vertically. These angles are then used to calculate positions through trigonometry.
Instruments Used:
- Theodolite – core instrument for angular measurement.
- Tripod – supports and stabilizes the theodolite.
- Plumb bob and spirit level – used for leveling and centering.
- Measuring tape and stadia rod – for linear measurements.
Use Cases:
Used in bridge construction, highway planning, and large real estate developments where terrain variation must be accounted for precisely.
Pros:
- Delivers very high accuracy in angular data.
- Suitable for triangulation and contour surveys.
- Compatible with leveling instruments.
Cons:
- Requires skilled surveyors and detailed calculations.
- Slower than GPS or total station methods.
- Sensitive to leveling and setup errors.
5. Total Station Surveying
A total station integrates electronic distance measurement (EDM) with angular measurement and digital data recording, making it one of the most advanced and preferred tools in modern land surveying.
Process:
The total station is set up on a tripod and leveled. It emits a laser or infrared beam to a prism placed at the survey point. The reflected signal is used to calculate distances and angles, and the data is digitally recorded.
Instruments Used:
- Total station unit – combines EDM and theodolite functions.
- Reflector prism and pole – reflects the signal.
- Tripod and data logger – supports and stores the data.
- Software – for post-processing and plotting.
Use Cases:
Widely used in commercial real estate layout, cadastral surveys, infrastructure development, and construction project monitoring.
Pros:
- Extremely accurate and efficient.
- Reduces human error through digital entry.
- Allows generation of 3D topographical maps and CAD exports.
Cons:
- High upfront investment and maintenance cost.
- Requires training and periodic calibration.
- Not suitable in adverse weather conditions.
6. GPS Surveying
GPS (Global Positioning System) surveying leverages satellite signals to determine precise coordinates of land features. It is commonly used for large, inaccessible, or remote land areas.
Process:
Surveyors place GPS receivers at specific land points. The device triangulates signals from multiple satellites to fix geographic coordinates. These readings are later processed using GIS software for mapping and analysis.
Instruments Used:
- GPS receiver – primary tool for capturing coordinates.
- Base station (for high-precision RTK GPS) – used to correct positional errors.
- GIS software and mapping tools – for data visualization.
- Data logger or smartphone app – to store and process readings.
Use Cases:
Used in government cadastral mapping, forest boundary delineation, agricultural land development, and remote infrastructure planning.
Pros:
- Efficient for vast, open, or inaccessible areas.
- Provides georeferenced data useful in GIS mapping.
- No need for line-of-sight between survey points.
Cons:
- Limited accuracy in densely built or forested areas due to signal obstruction.
- May require corrections using RTK or post-processing.
- Not ideal for micro-level planning or small urban plots.
Methods to Determine Your Property Size
The extent of a property can be determined in various ways.
- Government records and land title deed, held in the custody of government authorities, contain accurate measurements and boundary specifications.
- Cadastral maps, available in local land revenue offices or online, also provide a graphical representation of land plots.
- Most states provide online access to land records on government portals, such as Bhulekh and BhuNaksha.
- Participation of a licensed surveyor ensures accurate measurement through the use of sophisticated instruments and techniques.
- Satellite and GIS-based instruments also provide approximate measurements through satellite imagery, which may be helpful for initial estimates.
It is advisable to double-check property sizes from different sources to ensure accuracy and compliance with the law.
Conclusion
Land measurement forms the core part of property management and real estate development in India. There are several units and methods of measurement, and it is essential that stakeholders have a clear understanding of the industry’s norms and practices. The right land measurement protects the investments, prevents violations, and avoids construction disputes. Additionally, with the introduction of technology, the tools and techniques of the present age have made the practice more efficient and reliable, thereby benefiting all parties involved in property transactions.
FAQ
The most widely used units are square meters, square feet, acres, and hectares. Local units, such as bigha, katha, and gaj, are also widely used in specific states.
Conversion tables are available from government institutions and websites. For example, an acre is 4046.86 square meters or 43,560 square feet.
Accurate measurement guarantees adherence to the law, proper site planning, cost estimation and prevention of disputes and administrative problems.
In fact, different mobile apps and online GIS tools can provide rough estimates; however, if for official or legal uses, it is crucial to hire a licensed surveyor.
All Indian states offer online access to land records on government websites, such as Bhulekh BhuNaksha and state-specific land record portals.
