Tremie concrete is a specialised method used to pour concrete downwards from above the water surface, typically employed in bridge construction, tunnel construction, and certain types of pile foundations.
Tremie concrete is the most convenient method, especially when the traditional pouring methods are not suitable, such as in the case of constructing marine structures or in solutions like foundations in submerged conditions.
Although the application of tremie concrete is highly technical, this method can be efficiently and effectively utilized by practical individuals.
What does Tremie Concrete mean?
Tremie concreting is a method of placing concrete underwater by using a pipeline called a tremie. The word “tremie” has its origin from the French language which means funnel, which reflects the method of operation, i.e. as it has a concrete moving down through a funnel-shaped cap to the underwater base.
The primary benefit of this method is that it deposits the concrete out of the flow of the water. The tremie method ensures full containment of the move and therefore, the concrete will stay still and undisturbed.
How Does Tremie Concreting Work?
In tremie concreting, concrete is placed from the bottom upward through a vertical pipe, ensuring a continuous, undisturbed flow that prevents segregation. The process overview is outlined below.
- The tremie pipe is first lowered towards the spot where pouring is taking place, which is most of the time inside a cofferdam or a borehole.
- The bottom of the pipe is sealed by a disc or plug, preventing water from entering from the start.
- From the top, concrete is poured, and the plug is displaced by the flow through the bottom due to the force of gravity.
- The submerged part of the pipe remains in the wet mix concrete, thereby preventing further water from entering.
- While the pouring process progresses, the pipe is moved gently up but never above the concrete surface.
- This proper placement guarantees a smooth and compact pour while preventing any alteration to the mix.
Key Components Involved in the Tremie Concreting Process
The process is mainly utilized in foundation work for marine structures, bridges, and tunnels and it requires the use of specific equipment to ensure that the concrete mix is effectively placed without being compromised by water. Here are the key components of the process,
Tremie Pipe
The tremie pipe, which is typically a rigid vertical pipe with a 200-300 mm diameter, is the means of conveying the concrete mix from the surface to the particular underwater location. The tremie pipe is strategically placed to ensure that only a minimal amount of water is contaminated by concrete flow in a controlled manner.
Hopper
At the top of the tremie pipe, the hopper serves as a device into which concrete of a certain shape and size is poured. It may be noted here that this part is used to provide a continuous and smooth flow of concrete into the tremie pipe during the pour.
Plug/Go-Devil
A device called the plug or “go-devil” is inserted into the tremie pipe at the beginning of the pour. The function of the object is to prevent the ingress of water into the pipe and to guard the first batch of concrete so that it is not diluted or washed away.
Lifting Support
A crane or rig is a typical tool used to set and confirm the tremie pipe’s location and align it properly during concrete pouring, while simultaneously conveying the concrete to the intended area.

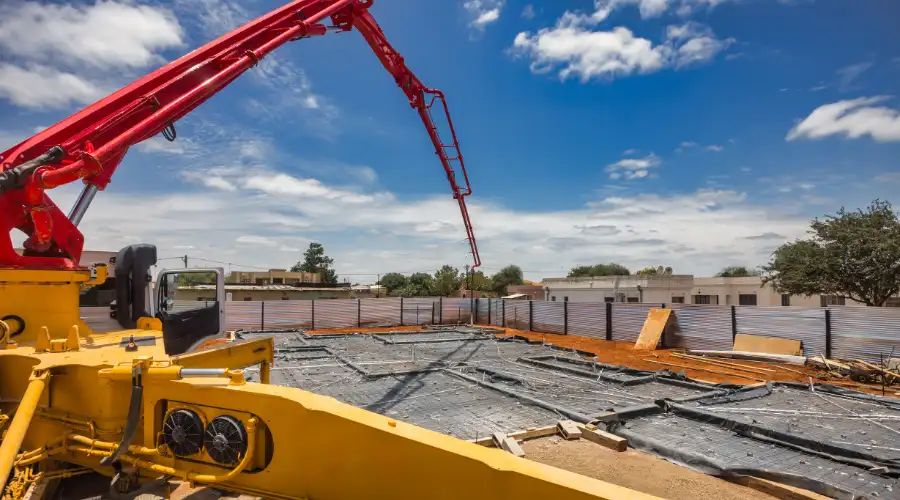

Concrete Pump
If the force of gravity is not enough to pull the concrete through the tremie pipe, then the concrete pump will be used for the job of driving the concrete in place with an even distribution to the extending height.
Working as a single system, these parts not only make the job easier but also ensure reliable and quality methods for casting underwater structures, thereby maintaining their durability.
Uses of Tremie Concrete in Construction
Some examples of where tremie concreting is employed include,
- Bridge Piers: The foundation of the piers, which are located in the water, either underwater in the sea or in coastal areas.
- Ports and Docks: This area uses concrete that is to be placed below the water table.
- Waterlogged Basements: Such types of basements are usually found in concrete wells or close to other water sources in the ground.
- Tunnels or Diaphragm Walls: Longitudinally, the concrete material is attached to the wall in deep excavations.
Advantages of Using Tremie Concreting
The concrete placement with a tremie pipe has several advantages, such as-
- This technique prevents the loss of cement, keeping the concrete unaffected by water, and thus serves as the ideal solution for quality preservation.
- The flow is smooth and even. Hence, all parts of the structure gain equal strength.
- It does not create many voids and honeycombing in the concrete, thereby improving its lifespan with the help of this method.
- The method minimizes the chance of the concrete having zones that are weak due to wetness-induced factors, as well as continuing to be a hard reason that triggers a wide range of voids early in the process.
Disadvantages of Using Tremie Concreting
There are certain points that need to be dealt with in spite of the positive attributes,
- Precision and timing are essential to accomplishing the task.
- For the job to be done correctly the approach needs cranes and pumps to be installed.
- The wrong material proportion may lead to the blockage of the tremie pipe.
- The construction in a limited space can be very complicated.
If a team of experts who planned the project carefully is available, then those problems can be solved successfully.
How to Choose the Right Concrete Mix for the Tremie Method?
The following mix properties are important for success,
- Slump Around 175–200 mm: This range ensures that the mix flows easily through the Tremie pipe while maintaining enough consistency to prevent segregation. The concrete must be fluid but cohesive.
- Anti-Washout Admixtures: These admixtures help keep the cement particles suspended in the mix, preventing them from washing away when exposed to water, which ensures the strength and integrity of the poured concrete.
- Moderate Aggregate Size: Typically, the aggregate size should be no larger than 20 mm. This ensures that the mix remains free-flowing and does not clog the Tremie pipe during the pour.
- Slow Initial Set: A slower setting time is necessary to allow the pour to be completed without premature hardening, especially for deep or underwater pours.
- Cohesiveness and Free-Flowing Nature: The mix should be cohesive enough to resist segregation but free-flowing to ensure smooth placement.
By customizing the concrete mix with these factors in mind, a successful and stable tremie concrete pour can be achieved, even under challenging underwater conditions.
Key Takeaways and Conclusion
Tremie concrete is a smart and reliable technique that solves the tough challenge of underwater concrete placement. It keeps the mix safe from water damage and ensures the final structure is sound and stable.
Whether you’re building piers, docks, or basements where water is unavoidable, understanding this method gives you a strong edge in execution. It’s one of those foundational techniques every engineer or contractor working near water should know inside out.
