Timber piles have been a reliable construction solution for over 2,000 years. Even today, they are used in many projects. Around 80% of waterfront structures depend on timber piles for stability, especially where the ground is soft or water levels are high. Compared to modern materials, timber piles are environmentally friendly, cost-effective, and naturally strong and durable. Let’s examine why many builders still choose these wooden supports for their projects.

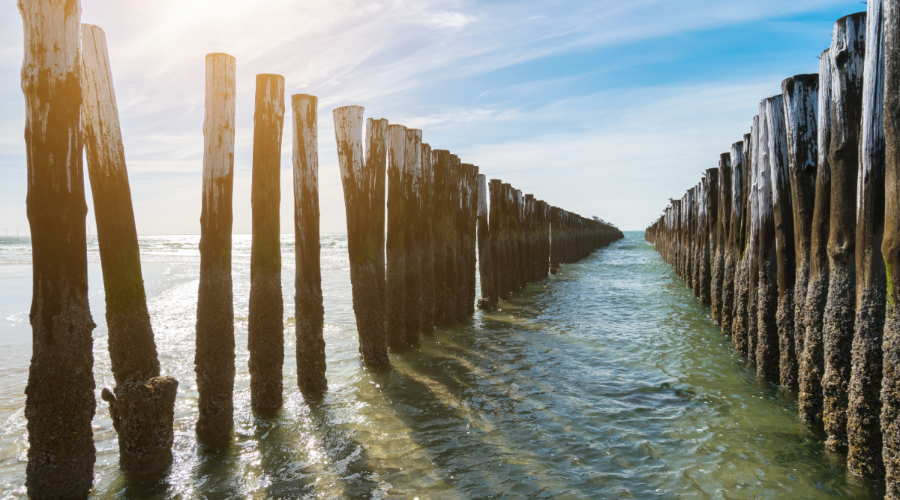

What are Timber Piles?
Timber piles are long, thin wooden sticks inserted into the soil. They support buildings and infrastructure by transferring loads from the structures to deeper ones. Timber piles are made from tree trunks with branches and bark removed, using the wood’s natural strength and durability for support. Timber piles usually extend between 30 and 60 feet, but special applications may require longer pieces.
Timber piles operate through two primary mechanisms:
- end bearing (where the pile tip transfers the load to firm soil or rock) and
- friction (where the pile surface generates resistance).
In many applications, both mechanisms work together to provide optimal support.
Quality and Classification of Timber Piles
A timber pile should be defect-free and of sound quality. It must be straight and taper evenly. A line drawn between the center of the butt and the center of the tip must not have any part exiting outside the pile. Here, on the basis of defects in Timber (decay, splits, twists of wood grains, etc.), size of knots, holes, etc., the quality of piles is determined.
Timber piles are classified into three classes on the basis of the quality of the timber and the dimensions of the pile.
Class A Piles
Class A piles represent the highest quality timber piles available for construction purposes. These premium elements must meet strict requirements:
- Minimum diameter of 14 inches at the butt end and 8 inches at the tip
- Primarily used for heavy loads and hard driving conditions
Class A piles are essential for critical infrastructure projects where failure would present significant safety risks or economic losses.
Class B Piles
Class B piles offer a balance between performance and budget efficiency:
- Minimum diameter of 12 inches at the butt end and 5 inches at the tip
- Suitable for moderate load applications and semi-permanent structures
These piles provide reliable performance for most standard construction applications with anticipated moderate loads.
Class C Piles
Class C piles represent the economical option for temporary or light-load applications:
- Minimum diameter of 10 inches at the bottom end and 4 inches at the tip
- Primarily employed for temporary structures, formwork support, or light loads
These piles provide adequate support for temporary structures or in situations where loads are relatively modest.
Applications of Timber Piles in Construction
Timber piles find application across diverse construction scenarios:
- Residential Foundations: Especially useful at coastlines or regions with elevated water tables where a conventional concrete footing may cause issues.
- Marine Structures: Timber piles are commonly used in ports, jetties, and piers, particularly when adequately treated for marine conditions.
- Small-Scale Bridge Piles: Most timber pile foundations can be made smaller because timber tends to have a low weight-to-strength ratio. In rural or low-load scenarios, timber piles serve as cost-effective supports for light bridge decks or temporary structures.
- Retaining walls: Timber piles may also provide the structural framework for retaining systems for slope stabilization or waterfront protection.
- Historic Restoration: In the case of a historic building renovation, timber piles often may represent the only truly authentic replacement option to maintain its structural integrity and design historicity.
Pros and Cons of Timber Piles
Understanding the advantages and limitations of timber piles helps inform appropriate application decisions:
Pros:
- Renewable resources with lower embodied energy than concrete or steel alternatives
- Excellent strength-to-weight ratio providing efficient structural performance
- Natural resistance to vibration and seismic forces through energy absorption
- Easy to handle, cut, and splice on-site without specialized equipment
- Lower initial cost compared to concrete or steel pile alternatives
- Carbon sequestration benefits contribute to environmental sustainability
Cons:
- Vulnerability to decay, insect attack, and marine borers without proper treatment
- Limited service life compared to concrete piles (typically 30-75 years, depending on conditions)
- Load-bearing capacity is generally lower than concrete or steel alternatives
- Potential for damage during driving if improper equipment or techniques are employed
- Quality variability based on natural wood characteristics and treatment effectiveness
- Environmental concerns regarding preservative chemicals used in treatment
Timber Pile Installation Process
The installation of timber piles follows a systematic process:
- Site Preparation: Survey and mark pile locations according to foundation plans.
- Material Inspection: Examination of delivered piles for compliance with specified class requirements, preservative treatment, and dimensional standards.
- Positioning: Placement of piles in designated locations with the smaller (tip) end oriented downward.
- Driving Equipment Setup: This typically involves a pile hammer mounted on leads attached to a crane or specialized pile driving rig.
- Installation: Driving piles into the ground using impact or vibratory hammers until reaching design depth or achieving refusal.
- Monitoring: Tracking penetration resistance to verify load-bearing capacity meets design parameters.
- Cutoff and Connection: Trimming piles to the required dimensions and installing connection hardware to integrate them with the foundation elements.
Cost Analysis of Timber Piles
The economic considerations of timber pile foundations include several factors:
- Material Costs: Typically ranging from ₹550-₹785 per linear foot depending on class, species, and treatment specifications
- Installation Expenses: Equipment mobilization (₹1.5 – ₹4 lakh), crew costs (₹20,000 – ₹35,000 per day), and productivity rates (20-40 piles per day under favorable conditions)
- Design Factors: Pile spacing, depth requirements, and load capacity influence overall system cost
- Regional Variations: Local availability of suitable timber species can significantly impact pricing
- Lifecycle Considerations: While initial costs may be lower than concrete alternatives, potentially shorter service life affects long-term economics
- Disposal Costs: End-of-life removal and appropriate disposal of treated timber requires special handling
Timber piles offer a cheap deep foundation solution for many construction applications when properly specified, installed, and maintained. Their continued use across diverse projects confirms their enduring value in the construction industry’s material palette.
Summing Up
Timber piles are a durable, eco-friendly construction solution that combines natural strength and sustainability. These wooden foundations offer the perfect mix of strength, affordability, and earth-friendly benefits that modern alternatives often can’t match. Whether building on soft soil, near water, or just looking for a reliable solution, timber piles prove that sometimes the old ways are still the best. It’s no wonder builders keep investing in this natural solution that connects us to construction traditions while meeting today’s needs.
